Air to water Heat pump Energy ventilation system with bypass
Short Description:
This ERV with heating and cooling is suitable for cold area buildings
• By pass function, when the temperature difference between day and night is large in summer, cool air can be quickly introduced into the room.
• The air to water pump water pipe can be connected, and the ERV ventilation temperature can be precooled and preheated by the energy of the air to water pump to improve the fresh air comfort.
• It provides healthy and comfortable fresh air while achieving maximum energy savings, heat recovery efficiency is up to 80%.
Product Features

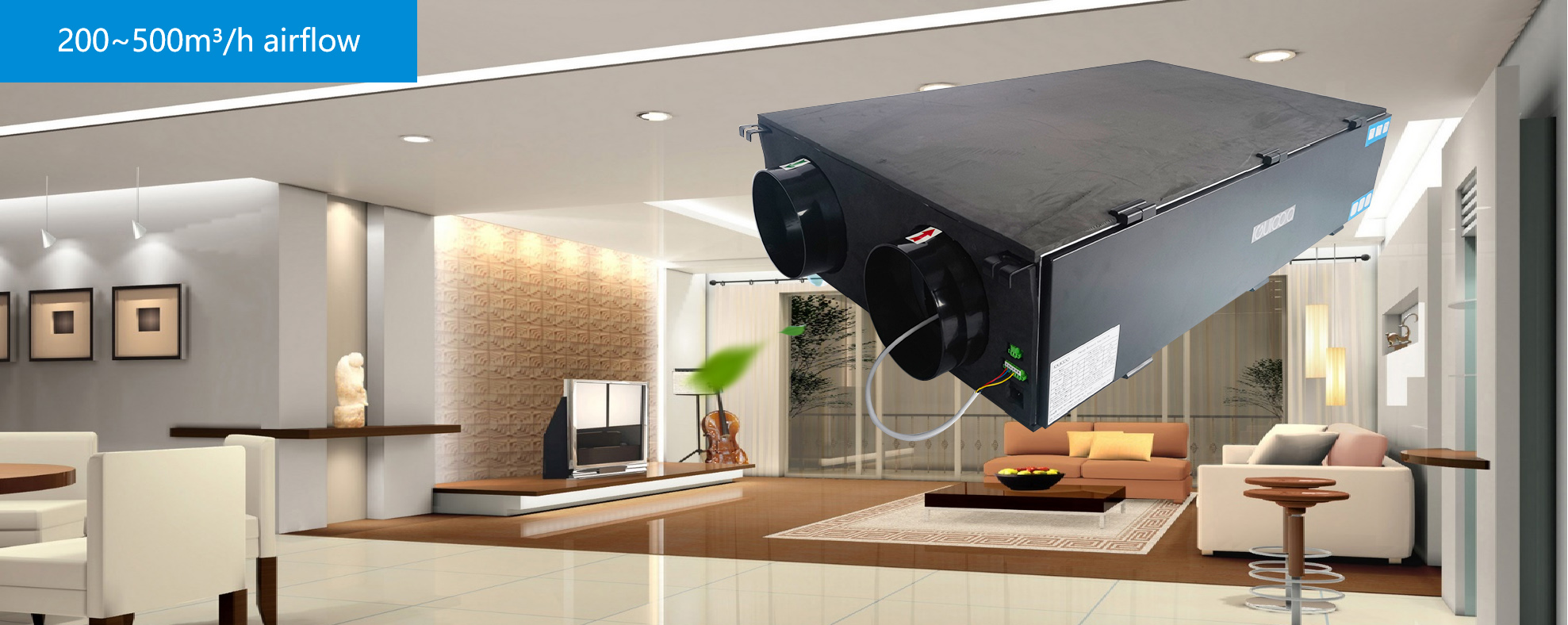

Airflow: 250~500m³/h
Model:TFWC A1 series
1、Fresh air purification +Energy recovery+Heating and cooling
2、Airflow: 250-500 m³/h
3、Enthalpy exchange core
4、Filter: G4 primary screen +Hepa12 screen
5、Side door maintenance
6、PTC heating

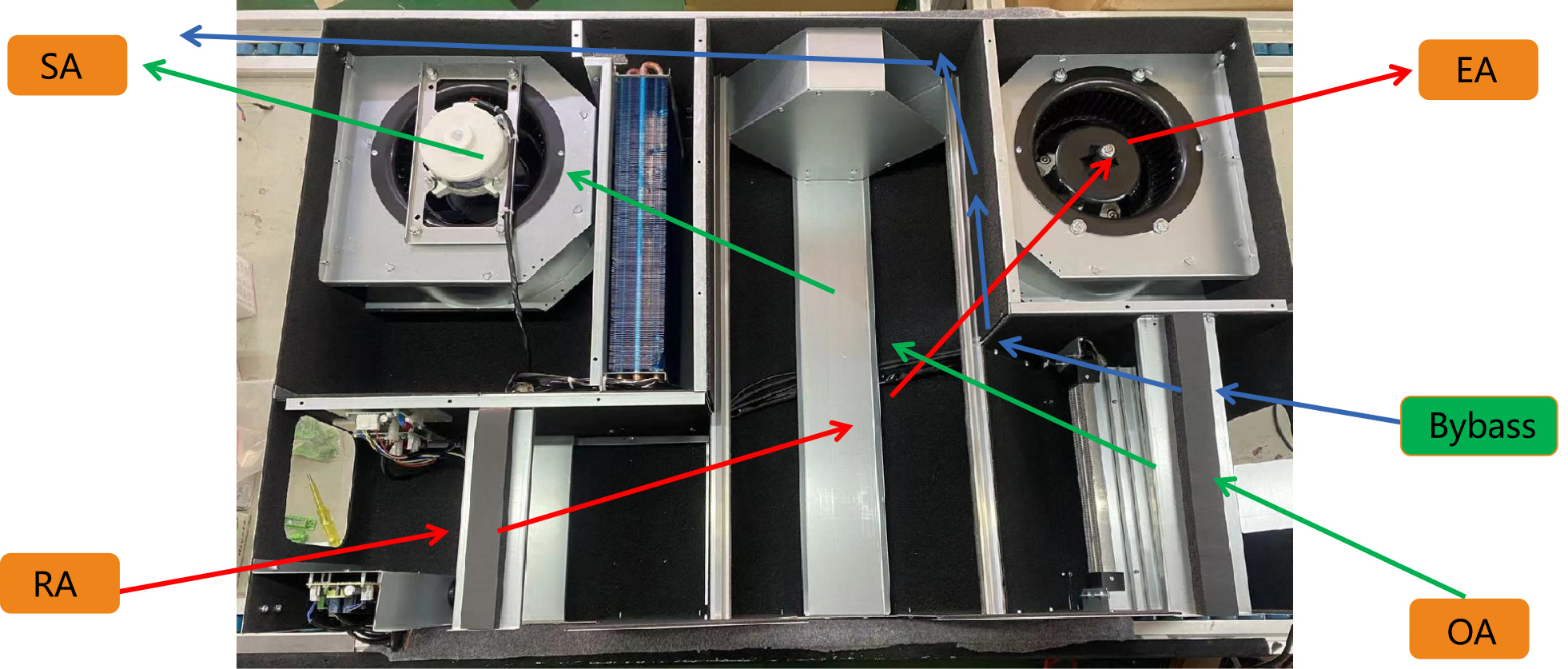

7、Bypass function
Product Introduction
This heat recovery system can be connected to the heat pump of the water system. The water in the collector pipe connect the ERV can preheated the out door inlet air , improve the temperature of the fresh air entering the room and improve the comfort of the indoor environment.
Product Advantages
DC motor:Higher Energy Efficiency and Ecology by Powerful Motors
Washable exchange core: The modified membrane which can wash the enthalpy exchange core and has a long life of 3-10 years
Energy recovery ventilation technology:The heat recovery efficiency can reach more than 70%
Smarter control:APP+Intelligent controller
Application Scenarios
Private Residence

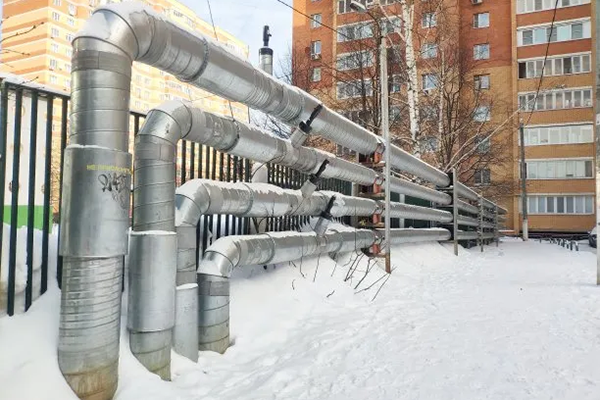

Central heating district
Commercial
Hotel

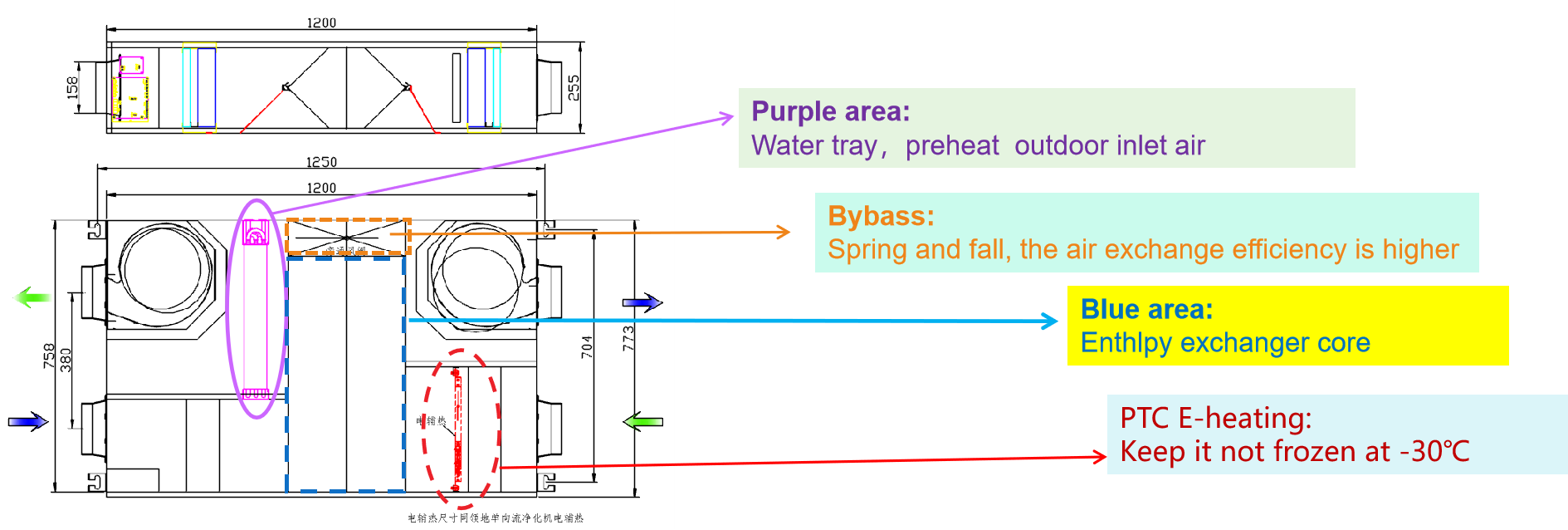

Structures

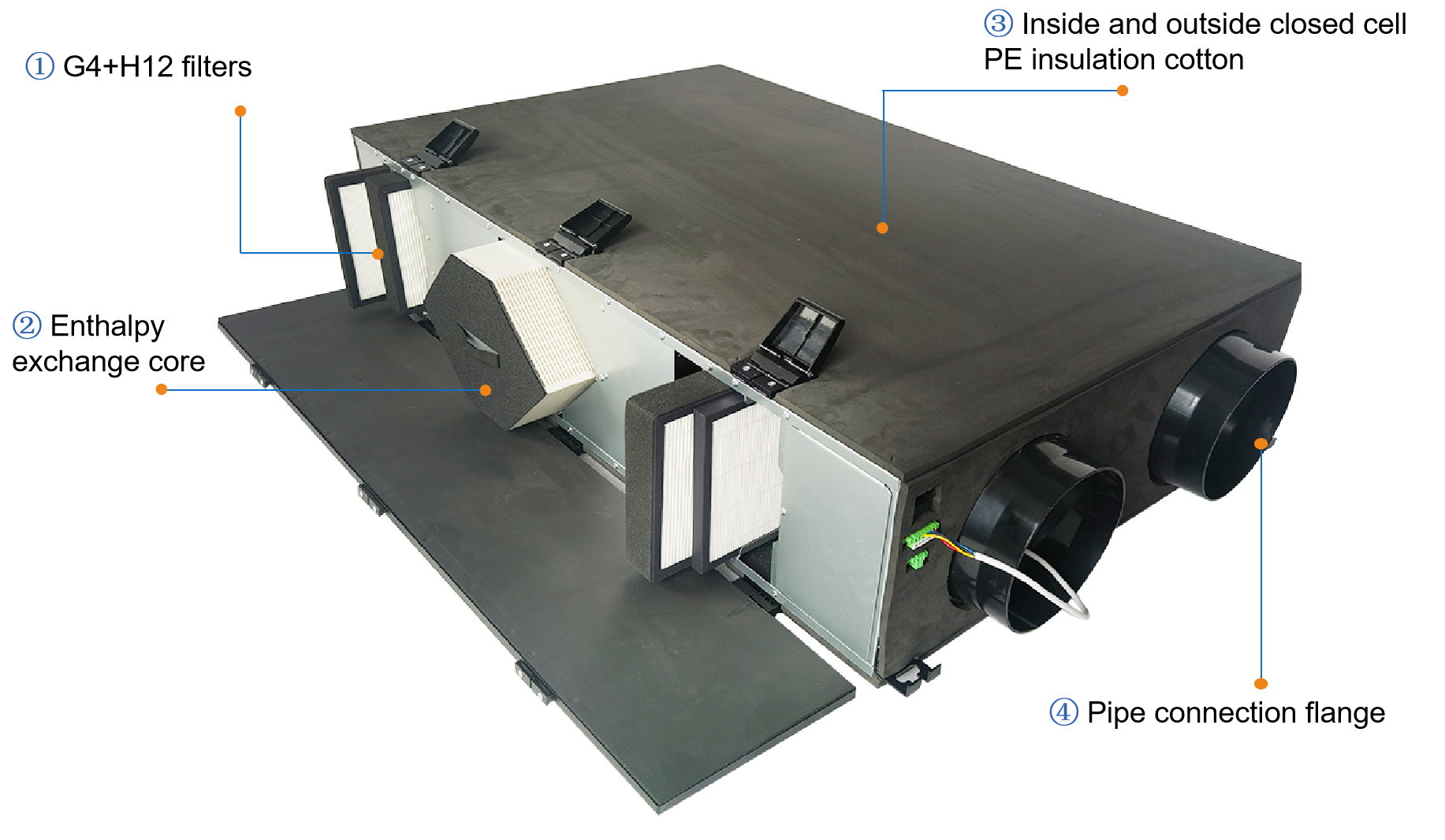

Product Description

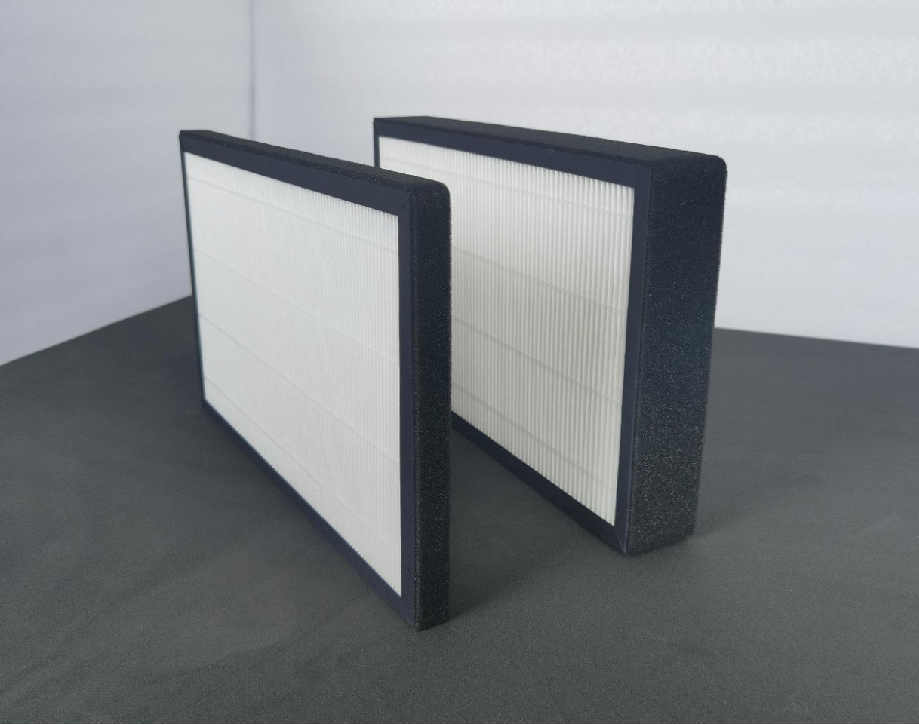

G4+H12 filter）*2 More cleaner fresh air

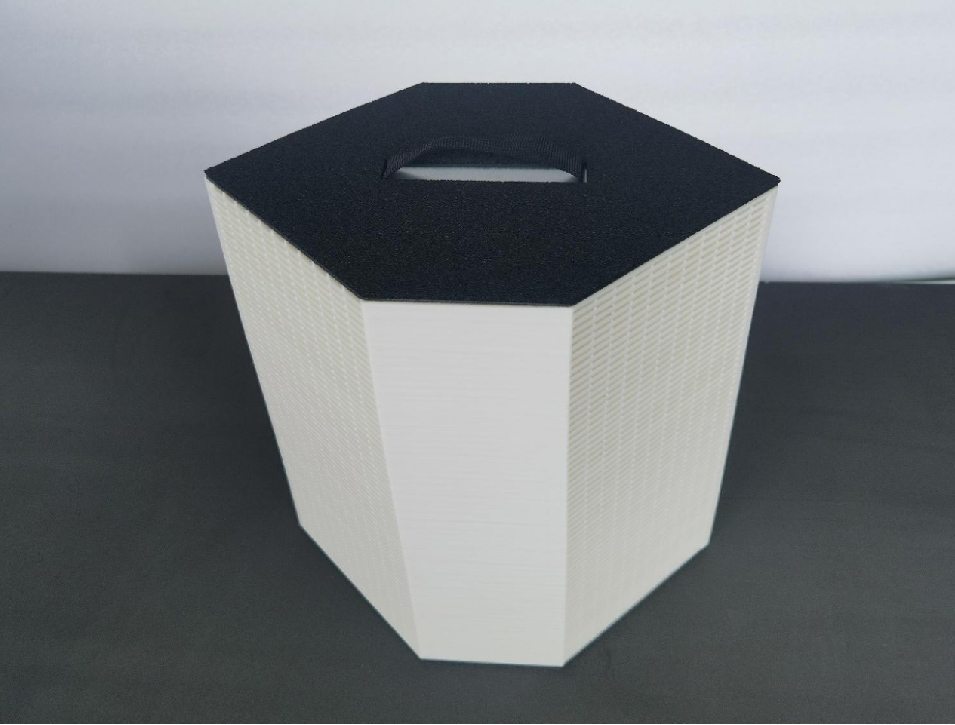

Countercurrent cross enthalpy exchange core, higher heat exchange efficiency
Product Parameter
|
Model |
Rated Airflow （m³/h） |
Rated E.S.P（Pa） |
Temp.Eff. (%) |
Noise （dB(A)) |
Purification efficiency |
Volt. (V/Hz) |
Power input (W) |
Heating/cooling calorie (W)
|
N.W(Kg) |

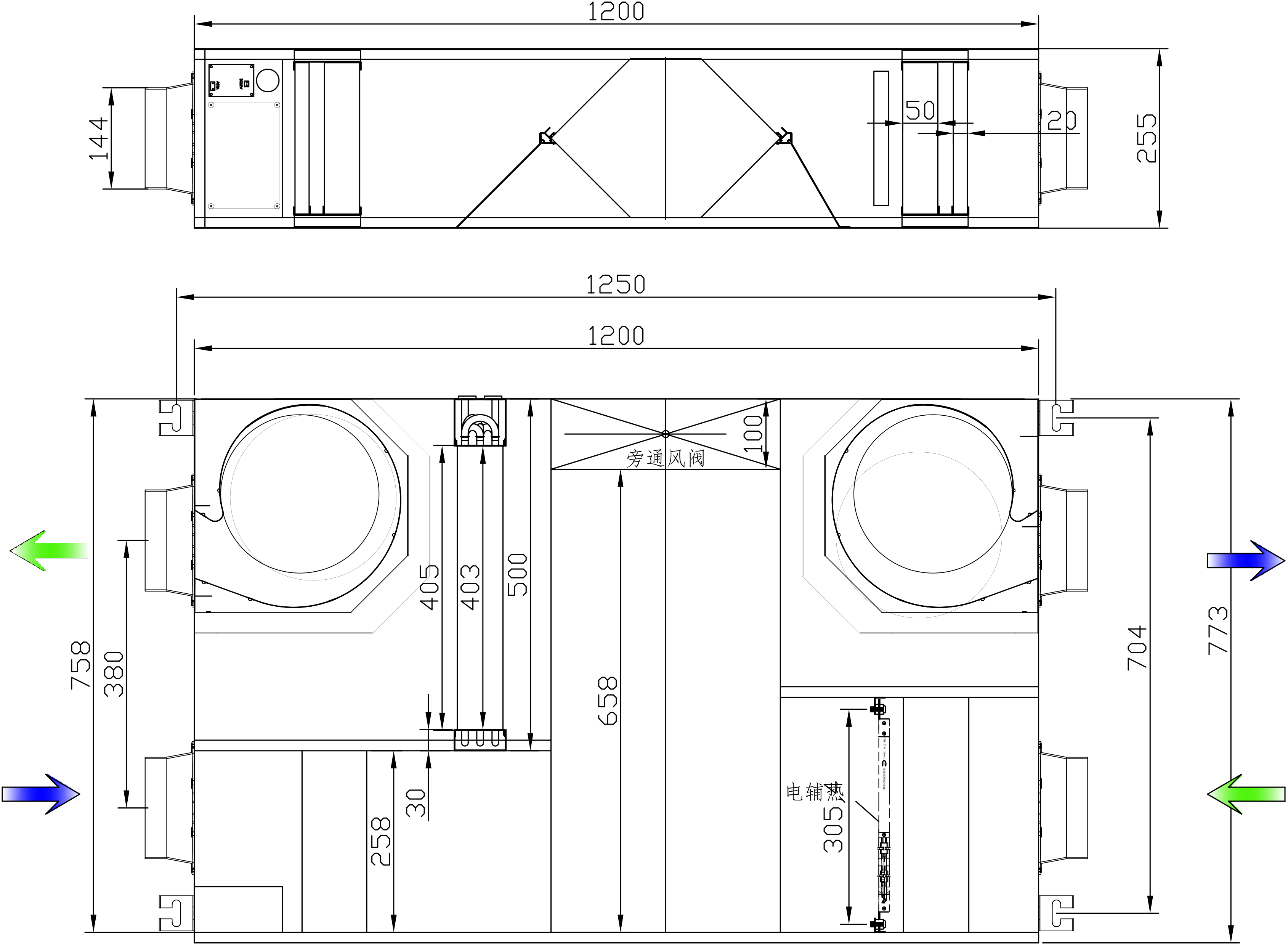

Size(mm) |
Control form |
Connect Size |
| TFWC-025 (A1-1D2) |
250 | 100(200) | 75-80 | 35 | 99% | 210-240/50 | 100（300*2） | 500~1500 | 58 | 1200*780*260 | Intelligent control/APP | φ150 |
| TFWC-035 (A1-1D2) |
350 | 100(200) | 75-80 | 37 | 210-240/50 | 130（300*2） | 500~1500 | 58 | 1200*780*260 | φ150 | ||
| TFWC-500 (A1-1D2) |
500 | 100 | 75-80 | 40 | 210-240/50 | 220（300*2） | 500~1500 | 58 | 1200*780*260 | φ200 |

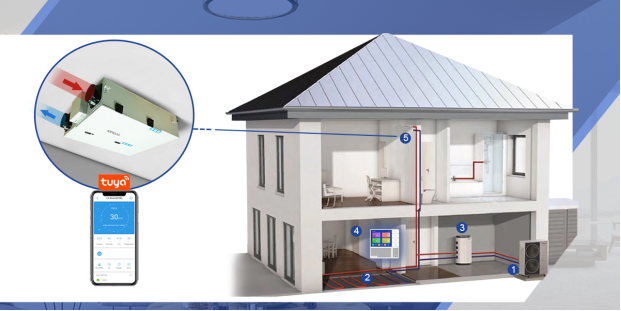

Installation Diagram
Water coil ERV installation schematic
1: Heat pump air conditioning external unit
2: Floor heating
3: Water tank
4: ERV controller
5: Heat pump ERV
The installation location is only for reference. Perform the installation according to the design diagram
Heating Effect
What about the water coil ERV heating effect?
Let's look at a set of experimental data
|
Preheating coil load calculation (inquire standard Yinchuan in China atmospheric pressure value: 88390pa) |
|||||||
| Wind speed | Coil inlet Temperature (℃) /relative humidity (%) |
Inlet enthalpy of coil (KJ/KG) |
Coil inlet Temperature (℃) /relative humidity (%) |
Inlet enthalpy of coil (KJ/KG) |
Airflow （m³/h) |
Air density （kg/m³） |
Preheating load (W) |
| High | 1.93/43.01 | 7.2 | 20.40/13.78 | 26.5 | 300 | 1.117 | 1797 |
| Mid | 1.93/43.01 | 7.2 | 21.77/13.34 | 28.3 | 250 | 1.117 | 1637 |
| Low | 1.93/43.01 | 7.2 | 23.17/10.76 | 28.9 | 200 | 1.117 | 1347 |

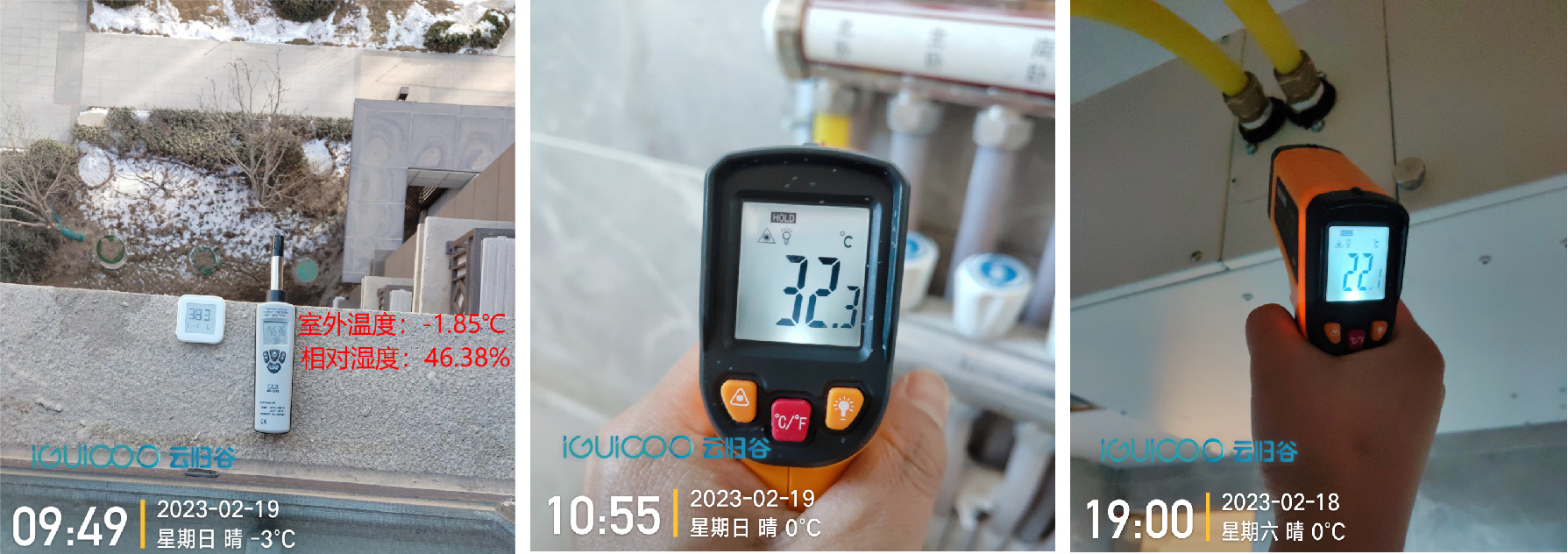

1, test site coil water inlet temperature: 32.3℃, outlet temperature: 22.1℃;
2. According to the enthalpy difference of the inlet and outlet air of the coil, the heat load of the coil is calculated.
3. Inquire the standard Yinchuan atmospheric pressure value: 88390pa
Conclusion
When the municipal hot water heating is not lower than 30℃, the preheating capacity of the three-pipe new fan (with preheating coil) at high/medium/low speed is:
High speed 1797W, medium speed 1637W, low speed 1347W
Meet the preheating requirements of fresh air.

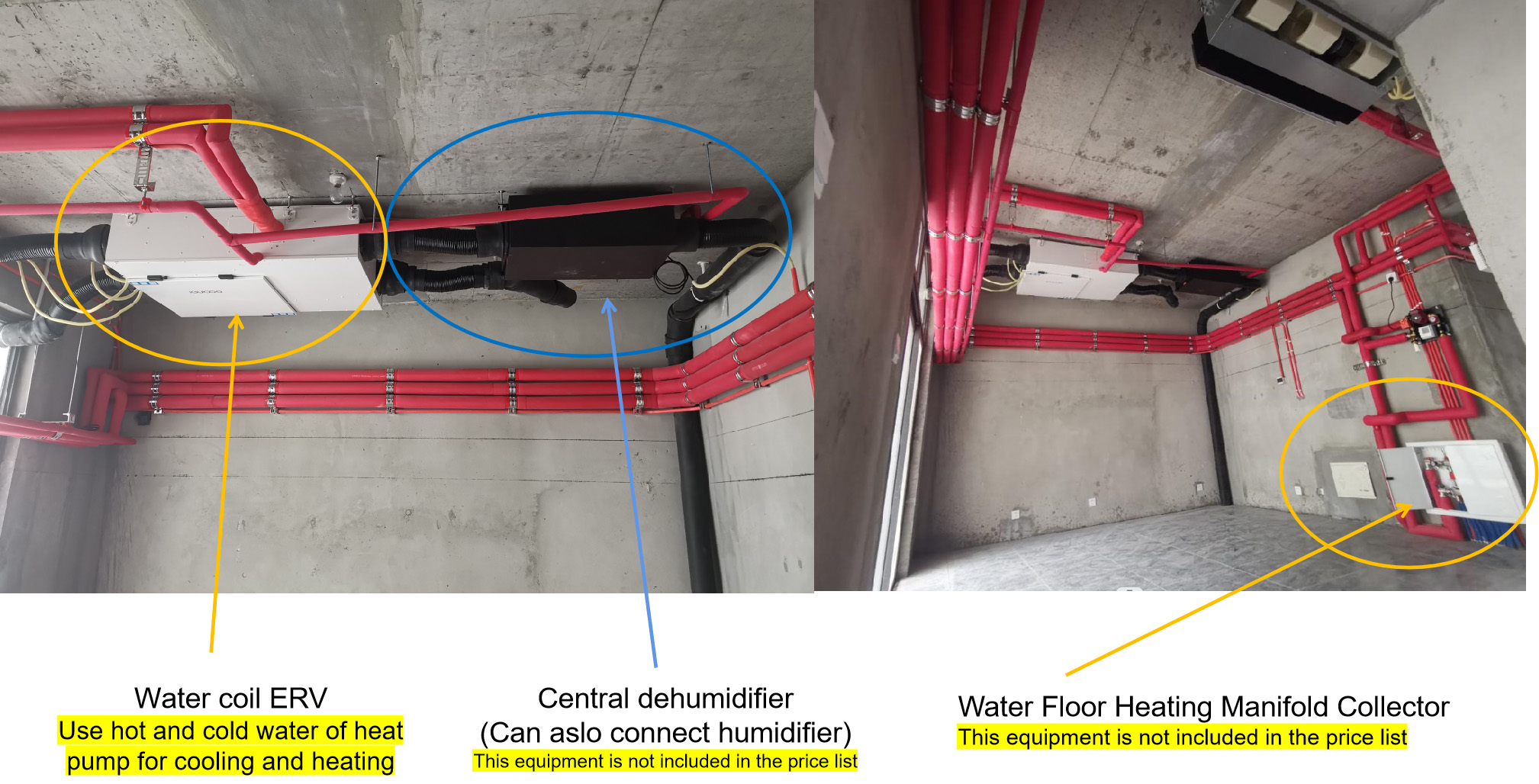

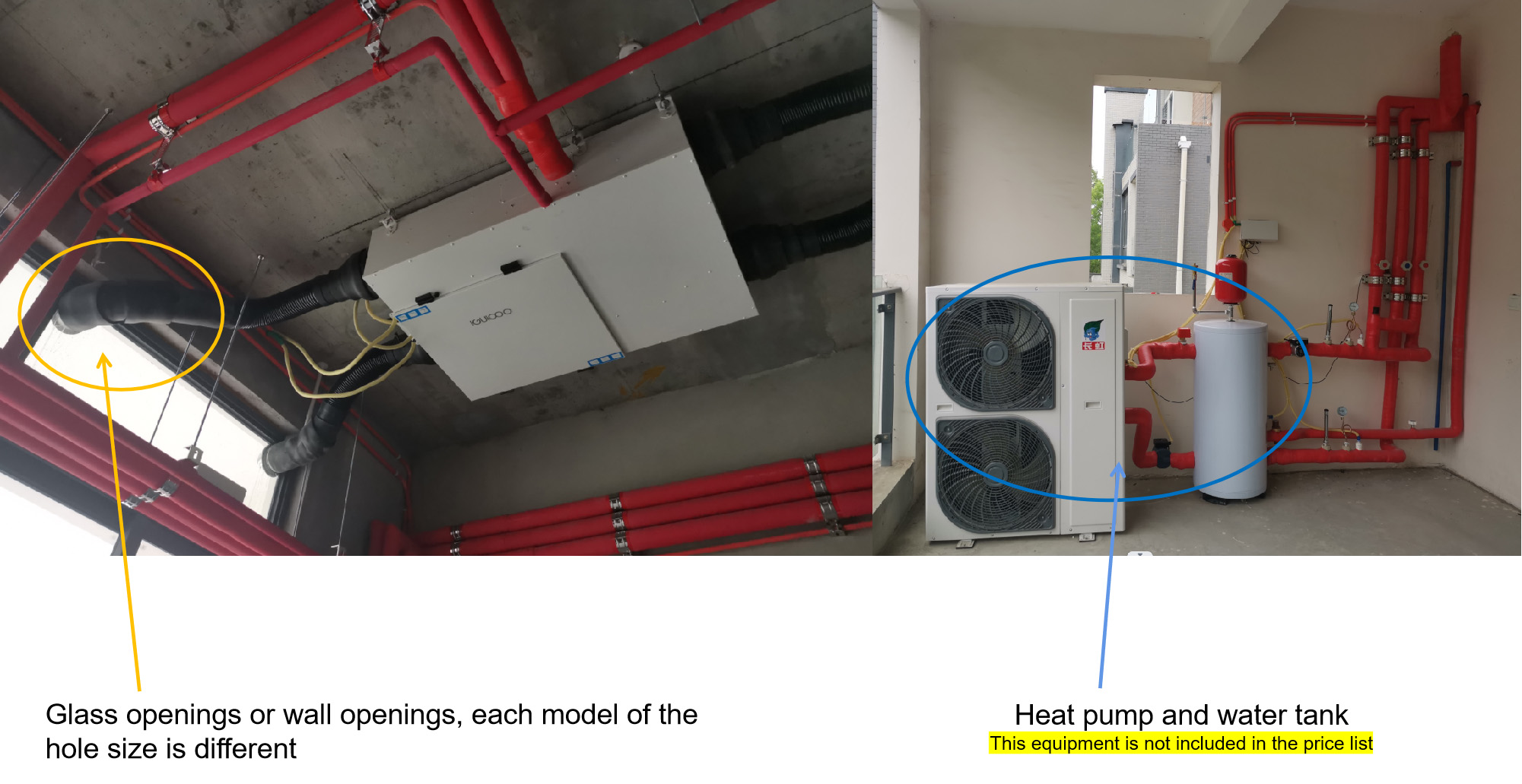

Application(ceiling mounted)
