Bypass Heat Recovery ventilation system with intelligent controller

Short Description:

This ERV with heating is suitable for humid area buildings •

The system uses air heat recovery technology

• It continuously and stably recover heat under humid conditions, providing sustainable energy solutions for the area.

• It provides healthy and comfortable fresh air while achieving maximum heat savings, heat recovery efficiency is up to 80%

Send email to us

Product Detail

Product Tags

Product Features

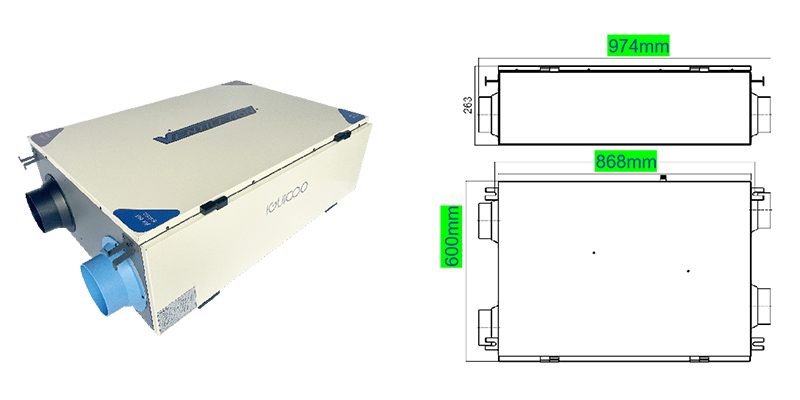

Airflow: 150~250m³/h
Model:TFPC B1 series
1、Fresh air purification +Heat recovery+Condensate discharge
2、Airflow: 150-250 m³/h
3、Heat exchange core
4、Filter: G4 washable primary +Hepa12 +Medium efficiency filter(optional)
5、Side door maintenance
6、Bypass function

Product Introduction

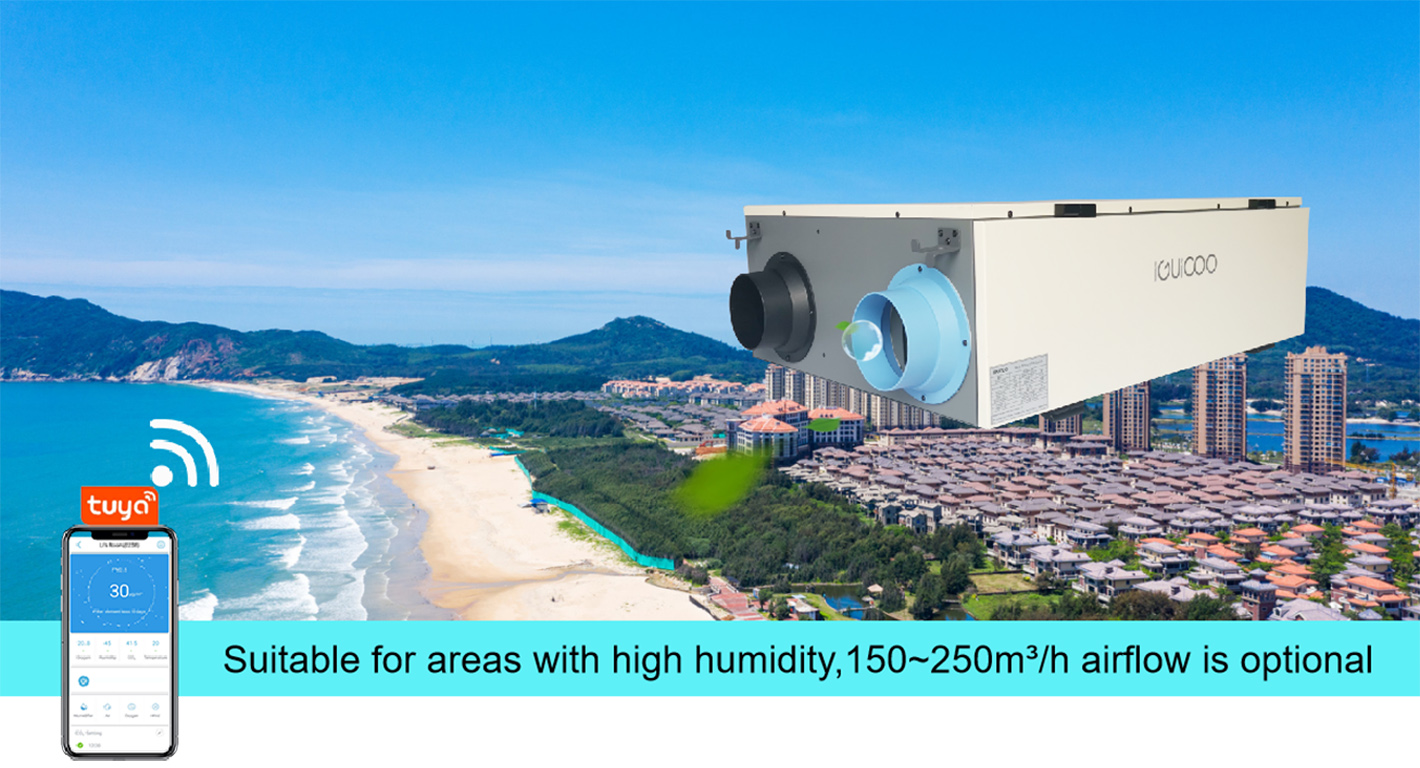

For areas with high humidity in some seasons and large temperature difference between day and night in some seasons, we specially designed this HRV to match such an environment.The HRV with a drain can condense the water vapor in the humid outdoor air into water and discharge it out of the room while recovering heat, avoiding the indoor wooden furniture and clothing from mold due to the humid

Function Point

1. Fresh outdoor air: Fresh air fully filtered (Supply fresh air to reduce the concentration of carbon dioxide.)

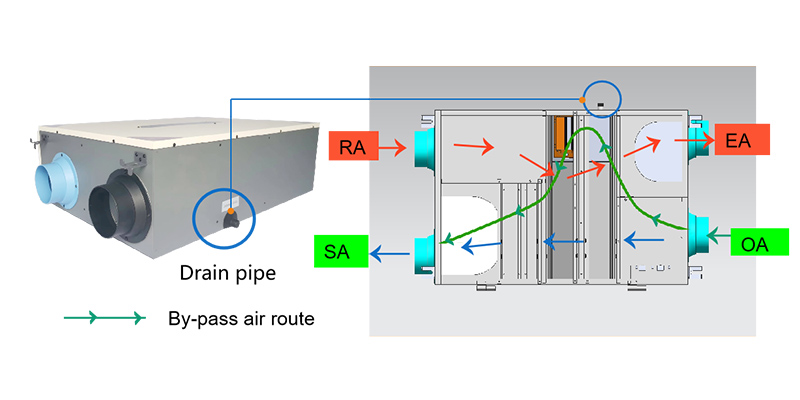

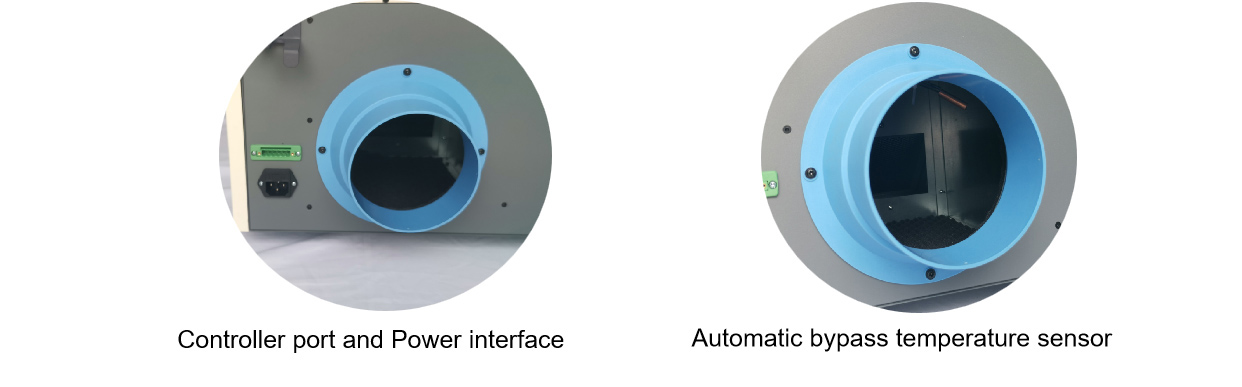

2. Automatic Bypass Function: Built-in sensor, the bypass function is automatically enabled on arrival conditions
3. Heat Recovery: Aluminum foil heat recovery core, with high-efficiency heat exchange, energy-saving, and a service life of up to 3~10 years, can be washed with water，with drain pipe.
4. Four speed adjustment to create a comfortable environment.
5. Intelligent Detection: Detection of indoor temperature, humidity, CO2 concentration, and PM2.5 concentration.
6. Intelligent Control and Display:It can realize more than 128 centralized linkage controlLCD screen display, display function mode, display values of air volume, indoor temperature, humidity, CO2 concentration, and PM2.5 concentration.
7. EC silent motor: Low noise, energy-saving, and high efficiency.

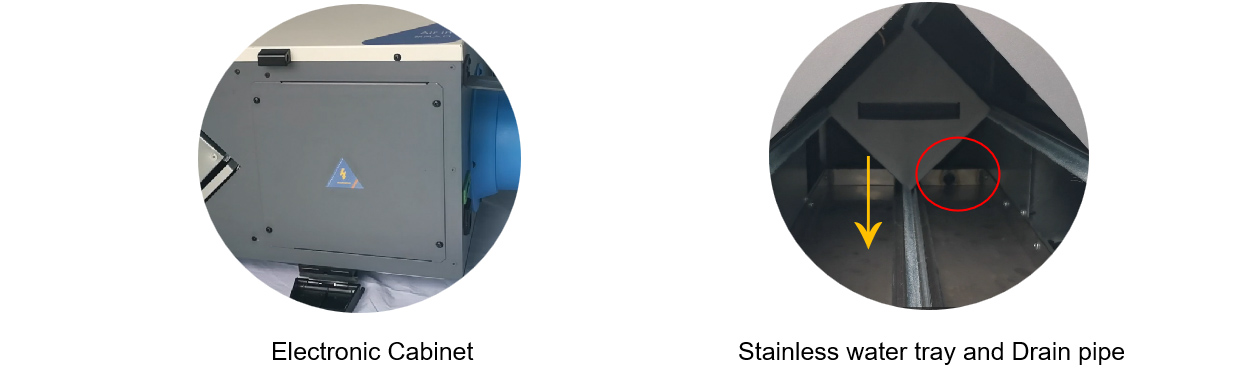

Product Details

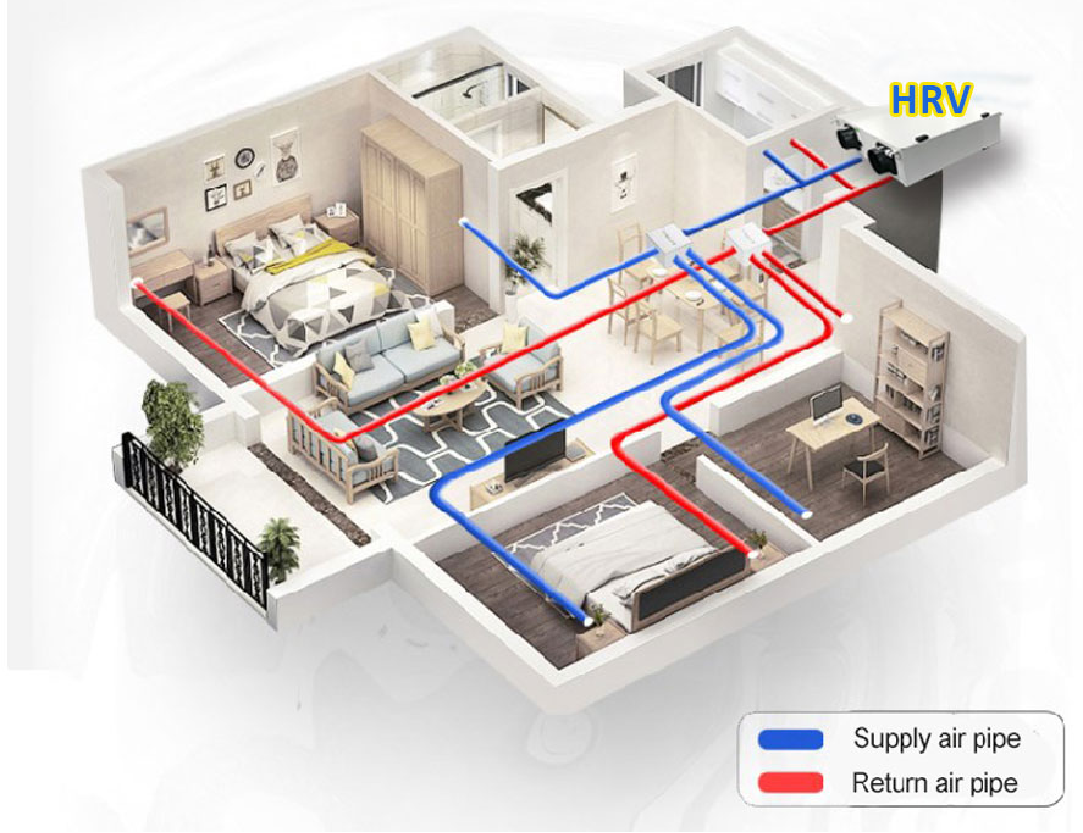

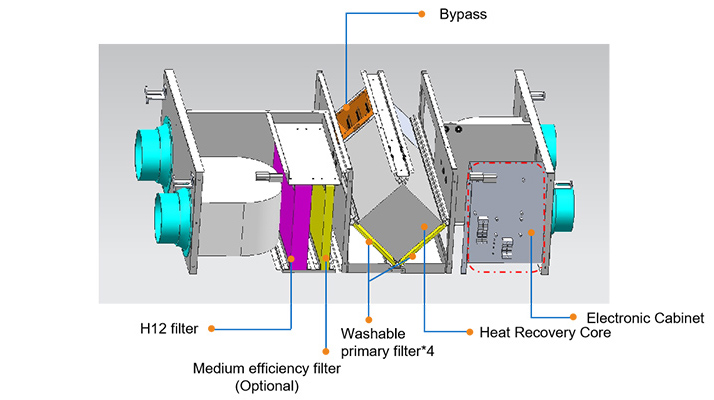

Installation diagram. The actual situation is subject to the designer's drawing.ence.

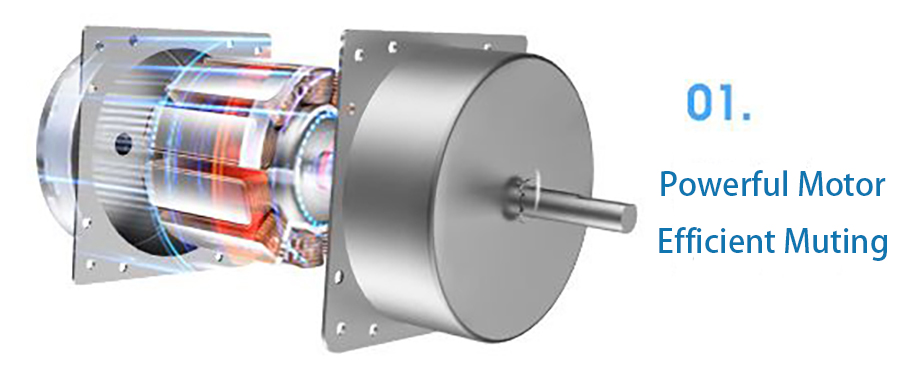

• EC motor
High-efficient and quiet, efficient copper core motor, stable and reliable performance.Power consumption is reduced, saving 70% energy consumption.

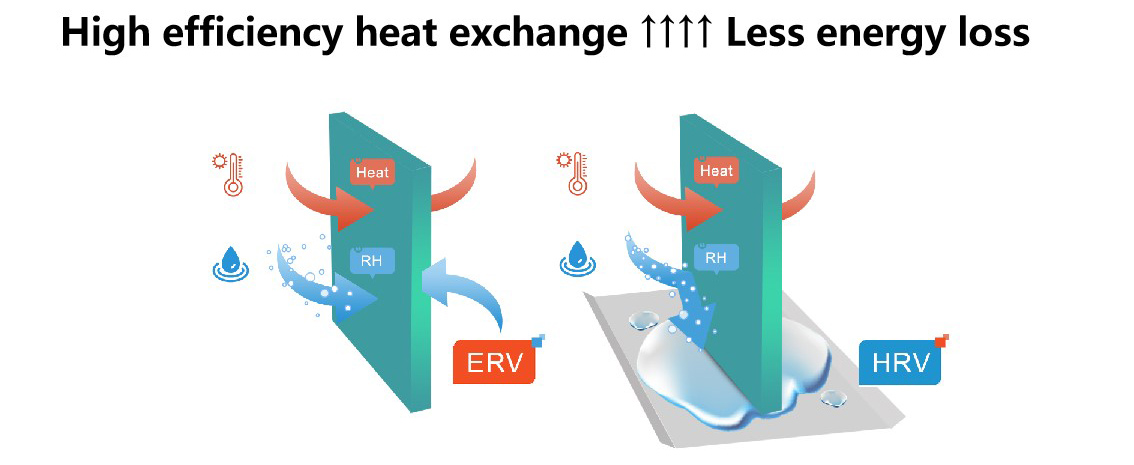

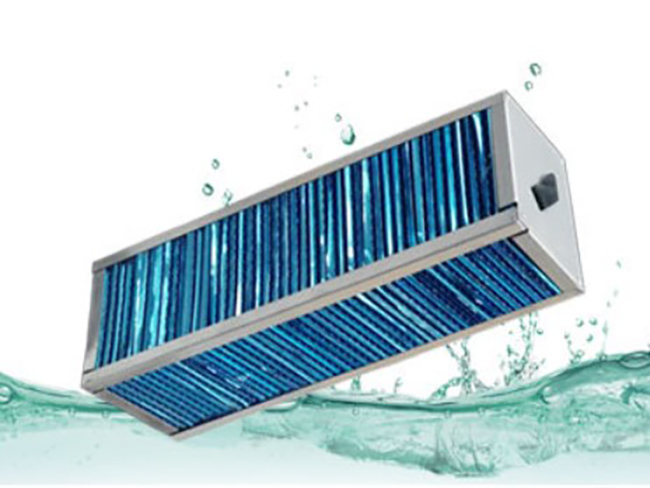

• Efficient heat recovery core
Aluminum foil heat recovery efficiency of heat recovery is up to 80%, effective air exchange rate is above 98%, with flame retardant, long-term antibacterial and mildew prevention

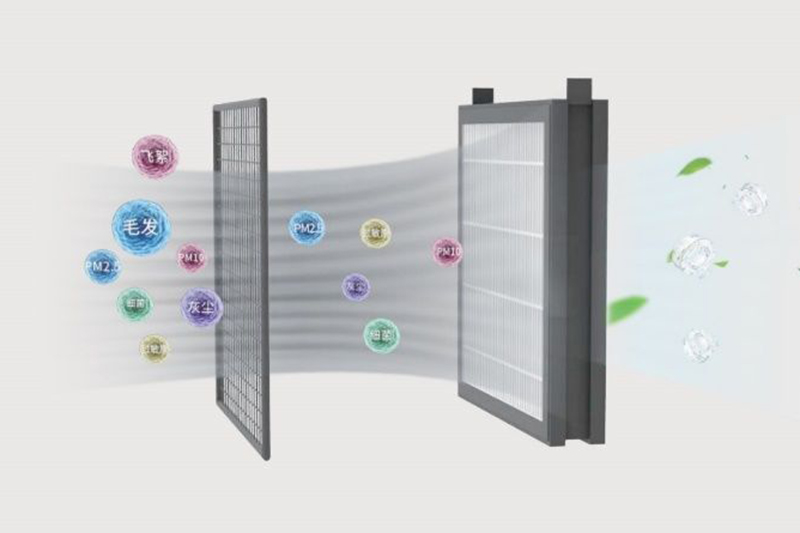

• Double purification protection：
Primary filter+ high efficiency filter can filter 0.3μm particles, and the filtration efficiency is as high as 99.9%.

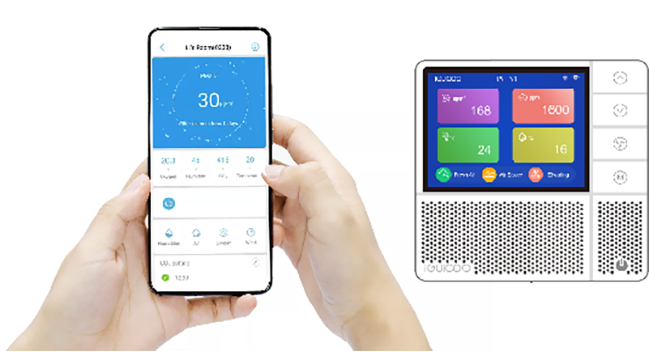

Intelligent control:APP+Intelligent controller
2.8-inch TFT LCD .
App is available to IOS and Android phones with the following functions:
1. Watch room air quality, local weather, temperature, humidity, CO2 concentration and VOC，So that you can adjust the device mode manually or automatically based on the data.
2. Setting Timely switch, speed settings, bypass/timer/filter alarm setting.
3. Optional language: English/French/Italian/Spanish and so on
4. Group control : One APP can control multipleunits.
5. Optional PC central control(up to 128pcs HRV controlled by one Data acquisition unit)，many data collectors are connected in parallel.
