Heat Recovery Ventilation with EC Motor

Short Description:

The electric auxiliary heating fresh air ventilator can heat the fresh air entering the room, providing us with a warm, comfortable, and fresh room even in cold winter, especially suitable for areas with colder winter.

Send email to us

Product Detail

Product Tags

Product Introduction

The electric auxiliary heating fresh air ventilation system utilizes the latest PTC electric auxiliary heating technology, which enables the ERV to quickly heat the air at the inlet after being powered on, thereby quickly increasing the temperature of the inlet. At the same time, it has an internal circulation function, which can circulate and purify indoor air, improve air quality. The electric auxiliary heating fresh air ventilation system is equipped with 2 pcs primary filters +1 pcs H12 filters. If your project has special needs, we can also discuss customizing other material filters with you.

Product Features

Airflow : 150-250m³/h
Model: TFPC B1 series
1. Outdoor input air purification +Humidity and temperature exchange and recovery
2. Airflow: 150-250 m³/h
3. Enthalpy exchanger
4. Filter: primary filter +High efficiency filter
5. Side door
6. Electric heating function

Application Scenarios

Private Residence

Residential

Hotel

Commercial Building

Product Parameter

Model	Rated airflow (m³/h)	Rated E.S.P (Pa)	Temp. Eff (%)	Noise (d(BA))	Volt (V/Hz)	Power input (W)	N.W. (KG)	Size (mm)	Connection size (mm)
TFPC-015 (B1 series)	150	100	78-85	34	210~240/50	70	35	845600265	φ114
TFPC-020 (B1 series)	200	100	78-85	36	210~240/50	95	35	845600265	φ114

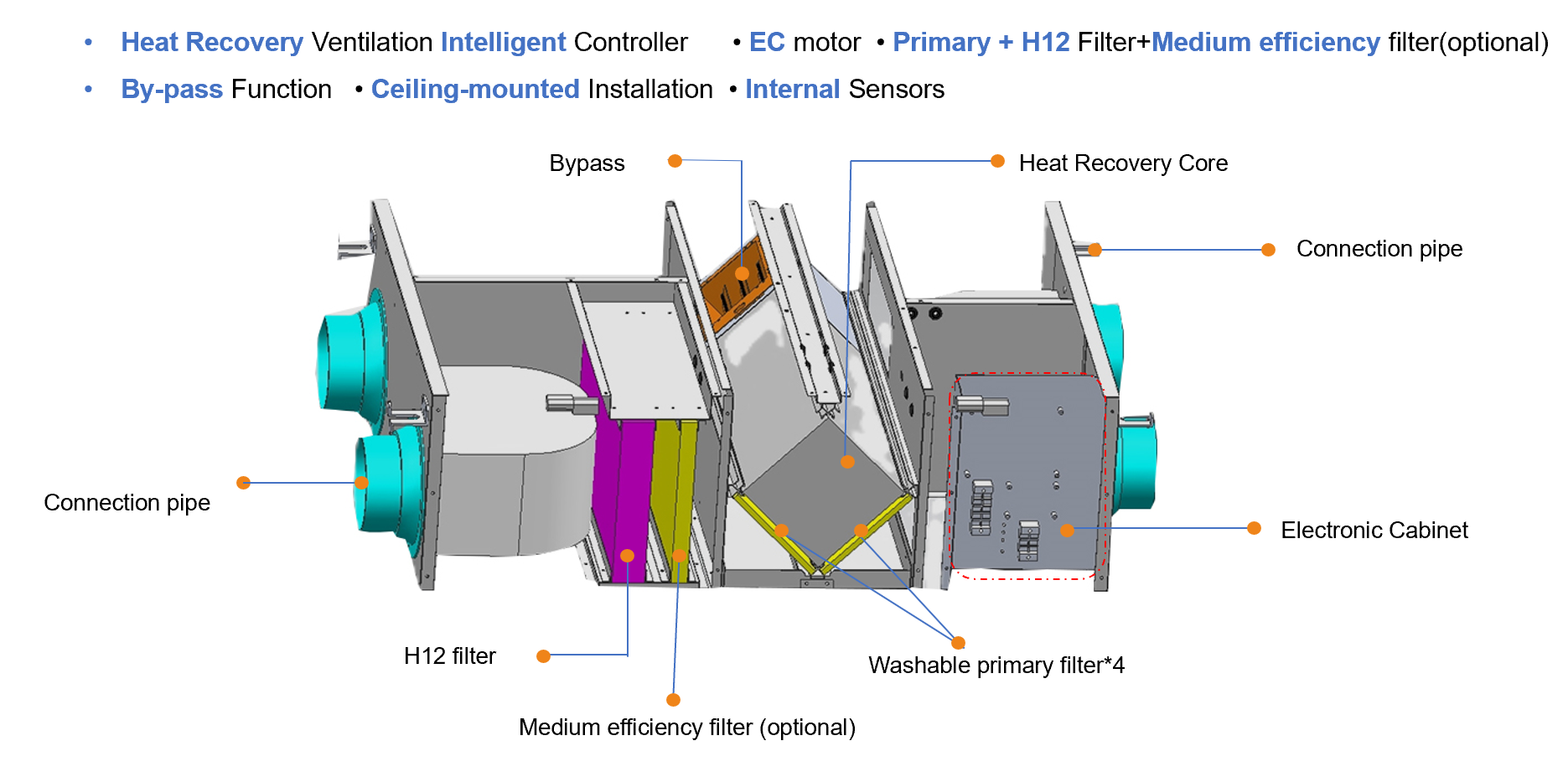

Structures

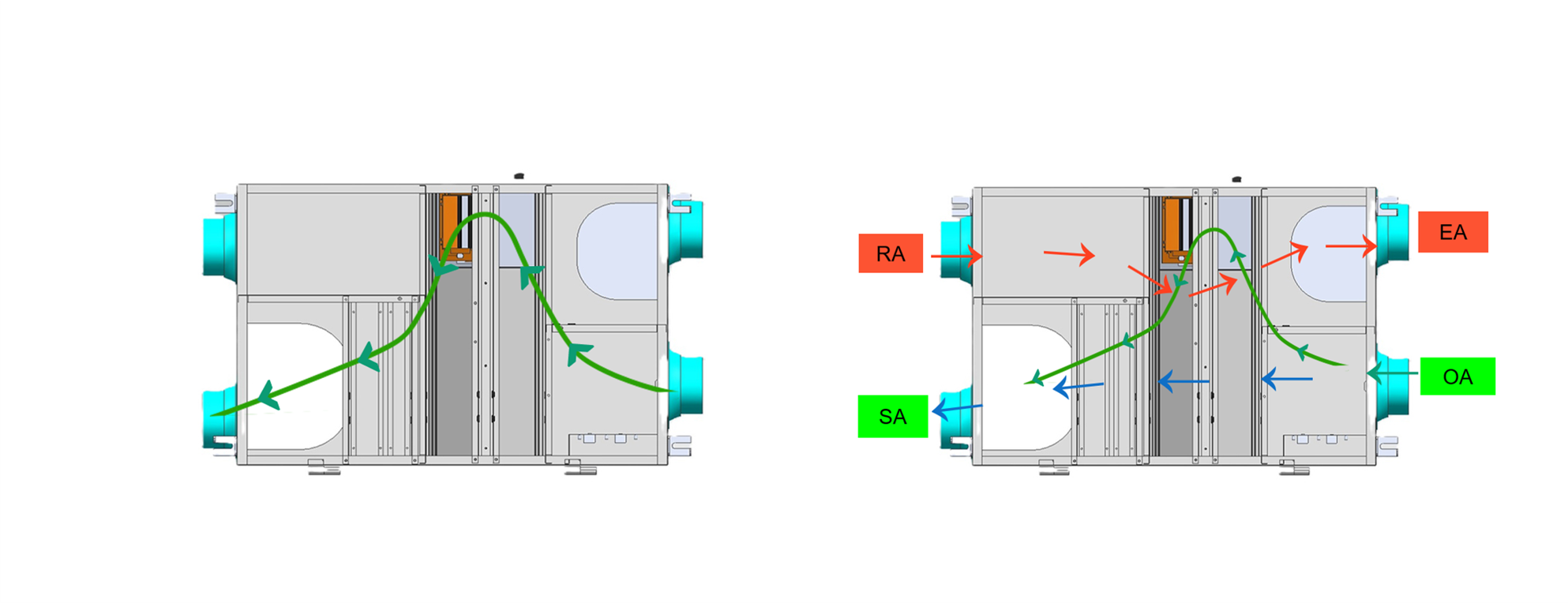

Standard ventilation model:

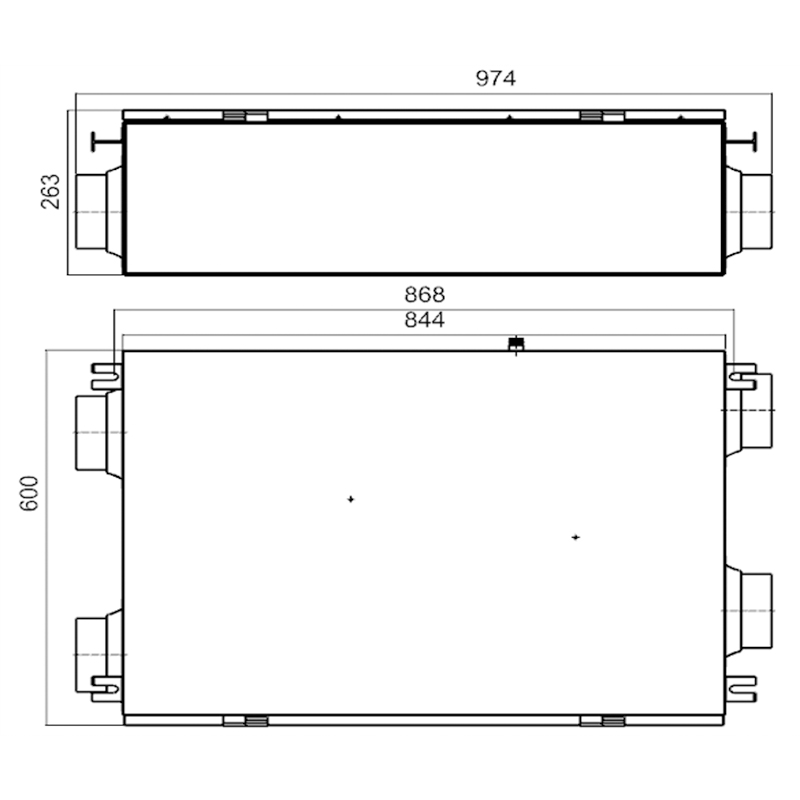

Dimension:

The B1 series of TFPC-015 and TFPC-020 series are dimensionally identical, they have the same length, width and height, so they can be used interchangeably without causing any fitting issues.

Whether during installation or use, users can safely replace the two series without paying attention to the size difference.

Air volume-static pressure curve :

Product Details

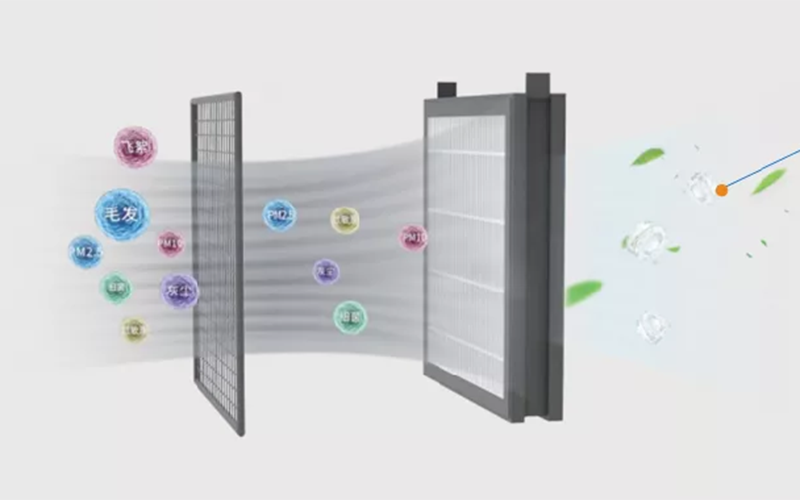

•The purification efficiency of PM2.5 particles is as high as 99.9%

1. Aluminum foil heat recovery is up to 80%

2. Flame retardant

3. Long-term antibacterial and mildew prevention function

4. Dehumidification

Different from ERV, for hot coastal cities, HRV can effectively reduce the humidity of fresh air into the room, when fresh air into the room condenses into water when it encounters the aluminum foil heat exchange core and is discharged to the outside.

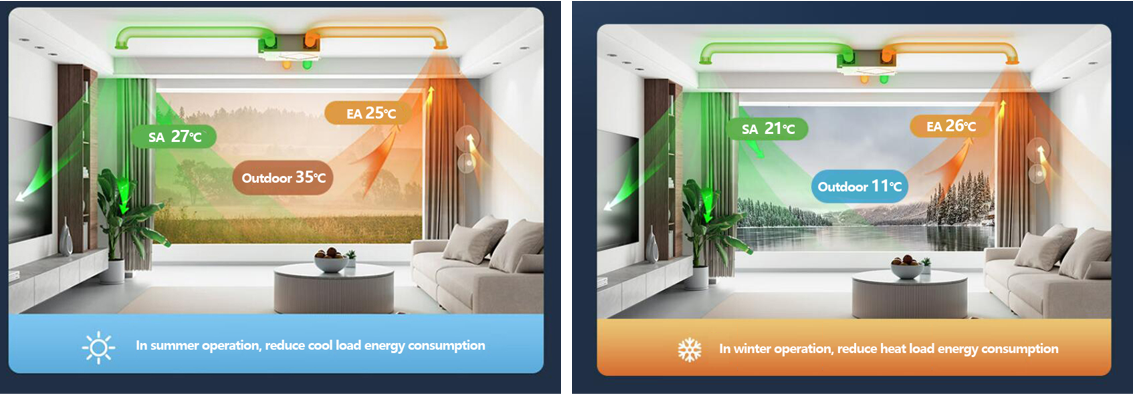

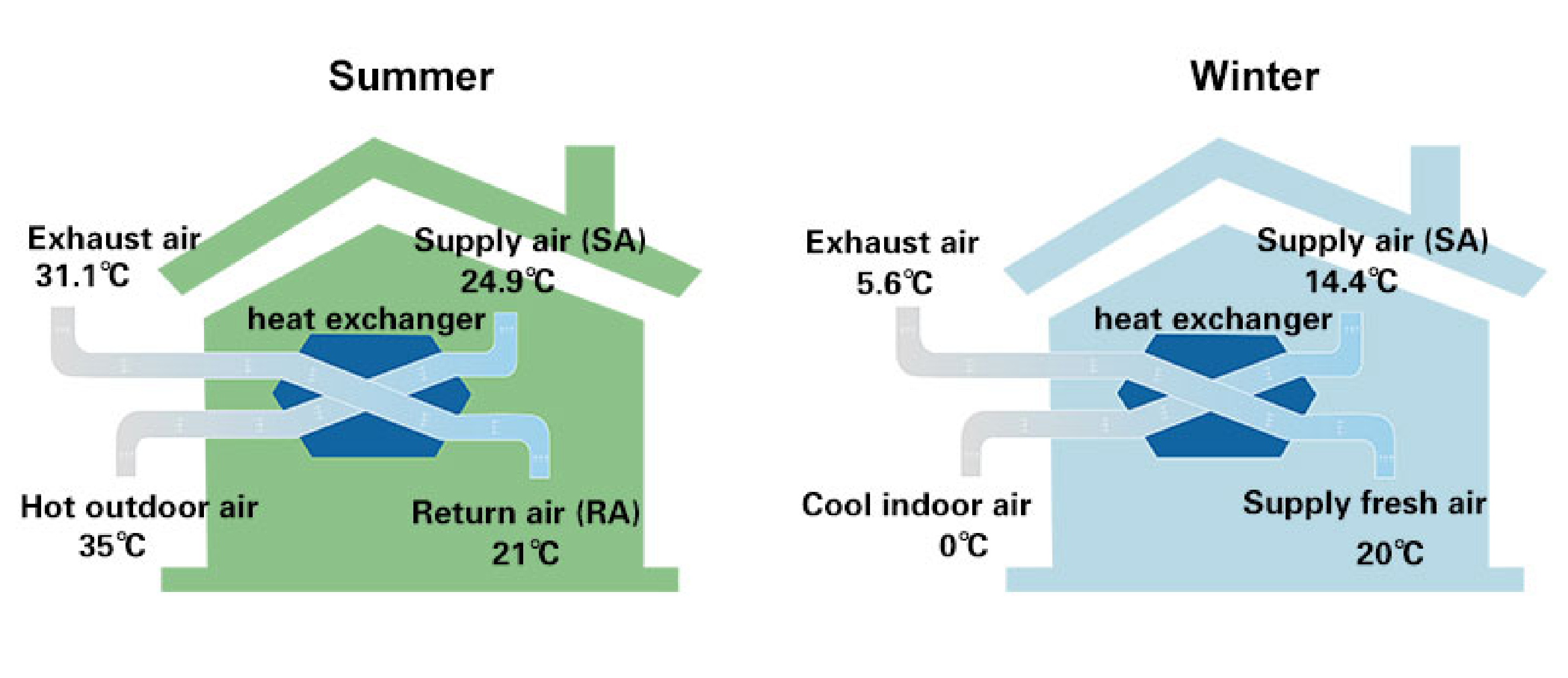

Graphene materials have a heat recovery efficiency of over 80%. It can exchange energy from the exhaust air of commercial buildings and residential buildings to reduce the loss of air energy entering the room. In summer, the system pre-cools and dehumidifies fresh air, and humidifies and preheats it in winter.

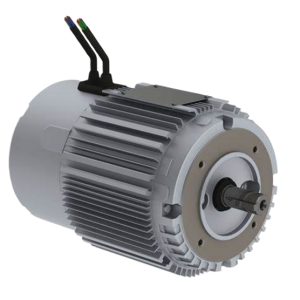

EC Motor

High efficiency: The EC motor adopts advanced electronic commutation technology, avoiding the energy loss of traditional mechanical commutators and improving the efficiency of the motor.
High reliability: The control system of EC motor adopts electronic technology, reducing the possibility of mechanical failures and improving the reliability of the motor.
Energy saving and environmental protection: EC motors do not require mechanical commutators, reducing friction and wear, while also reducing noise and vibration, meeting the requirements of energy conservation and environmental protection.
Intelligence: The EC motor controller makes the motor more intelligent and can adjust and control the fan according to changes in working environment temperature, wind pressure, and other parameters, improving the performance of the entire wind system.

Smarter control:Tuya APP+Intelligent controller ：
Temperature display to monitor indoor and outdoor temperature constantly
Power to auto restart allow ventilator recover automatically from power cut down CO2 concentration control
RS485 connectors available for BMS central control
Filter alarm to remind user cleaning the filter in time
Working status and fault display Tuya APP control
