Energy Heat Recovery Fresh Air Ventilation System Ceiling Ventilate
Short Description:
• RH Automation • Boost Ventilation • DC motor • Freeze Protection Automation • PM2.5 Automation • Internal CO2 Sensor • Internal RH Sensor
WiFi remote intelligent control energy heat recovery ventilation system
It is built in energy saving BLDC motor, G4+H12 filter, high efficiency enthalpy heat exchanger. Ideal ventilation solution for family homes and commercial projects.
Product Introduction
We advocate a healthy, energy saving, clean and simple life.To this end, our R&D team has developed products that conform to our philosophy. It is energy recovery ventilator,it has heat and energy recovery exchange, APP remote control,users can clearly understand the air index of the indoor environment.
For some projects,our ventilation system can connect hundreds of equipment linkage control, can be centralized display control of each device,especially for large hotels and apartments, is the perfect solution for air ventilation engineering projects.
Product Features
Airflow: 150~1000m³/h
Model: TFKC A4 series
1.Energy saving BLDC motor, 4 speeds control
2.Filter alarm: filter dirty plugging replacement reminder
3.High efficiency enthalpy heat recovery, more comfortable indoor climate
4.G4+H12 filter, efficiency over 97% to filter the particulate from 2.5μm to 10μm
5.Intelligent control system, standard CO2 、PM2.5、humidity control function, 485 and BMS (Building Management System) control available
Application Scenarios
Private Residence
Hotel
Basement
Apartment
Product Parameter
|
Model |
Rated Airflow （m³/h） |
Rated E.S.P |
Temp.Eff. (%) |
Noise （dB(A)) |
Purification |
Volt. |
Power input |
N.W |
Size |
Control |
Connect |
|
TFKC-025(A4 -1D2) |
250 |
100 |
73-81 |
34 |
99% |
210-240/50 |
82 |
33 |
750*600*220 |
Intelligent control/APP |
φ110 |
|
TFKC-035(A4-1D2) |
350 |
120 |
74-82 |
35 |
210-240/50 |
105 |
45 |
830*725*255 |
φ150 |
||
|
TFKC-045(A4-1D2) |
450 |
120 |
70-75 |
36 |
210-240/50 |
180 |
48 |
950*735*250 |
φ200 |
||
|
TFKC-080(A4-1D2) |
800 |
100 |
70-75 |
42 |
210-240/50 |
500 |
80 |
1300*860*390 |
φ250 |
||
|
TFKC-100(A4-1D2) |
1000 |
120 |
70-75 |
50 |
210-240/50 |
550 |
86 |
1540*860*390 |
φ250 |

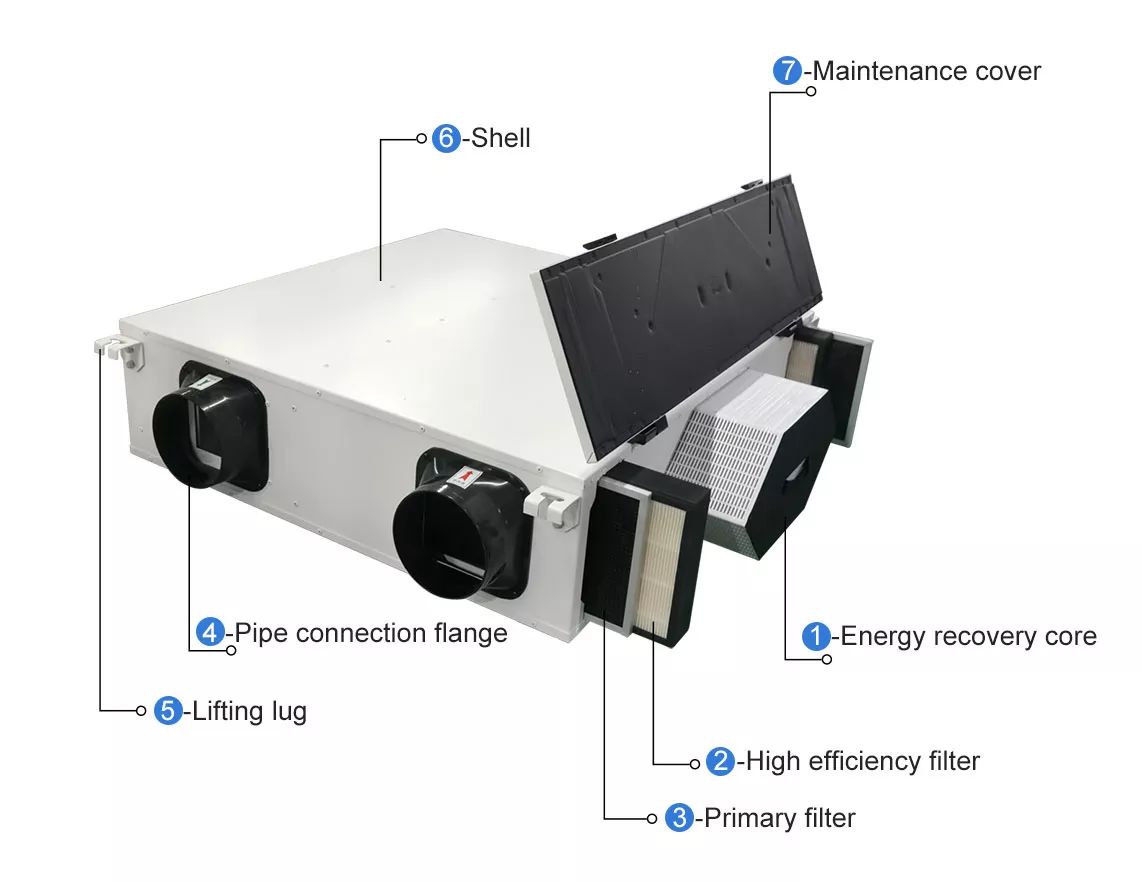

Structures
Product Details

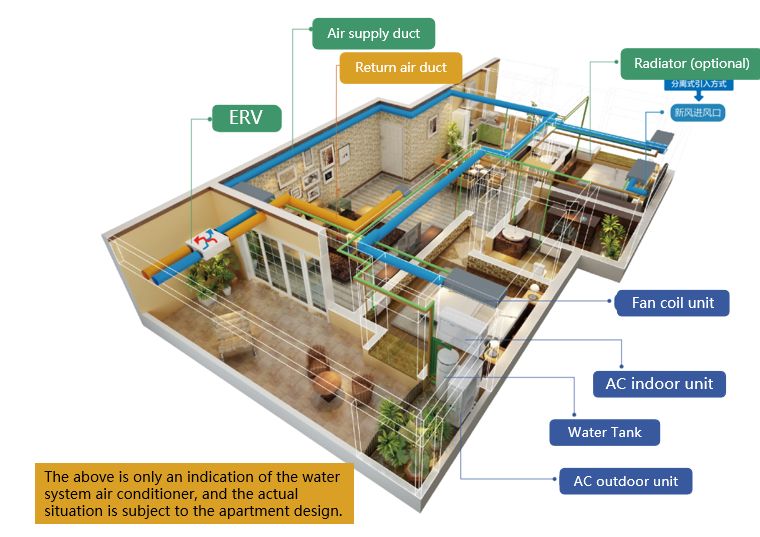

As we know,ERV can be used with kinds of heat pump air conditioning.It plays a role in this system to recover energy, ventilate and purify the air entering the room, and bring people a comfortable home. experience.
Moreover, for engineering projects, we can customize large-screen display, multi-machine linkage control display and other programs.
As we know,ERV can be used with kinds of heat pump air conditioning.It plays a role in this system to recover energy, ventilate and purify the air entering the room, and bring people a comfortable home. experience.

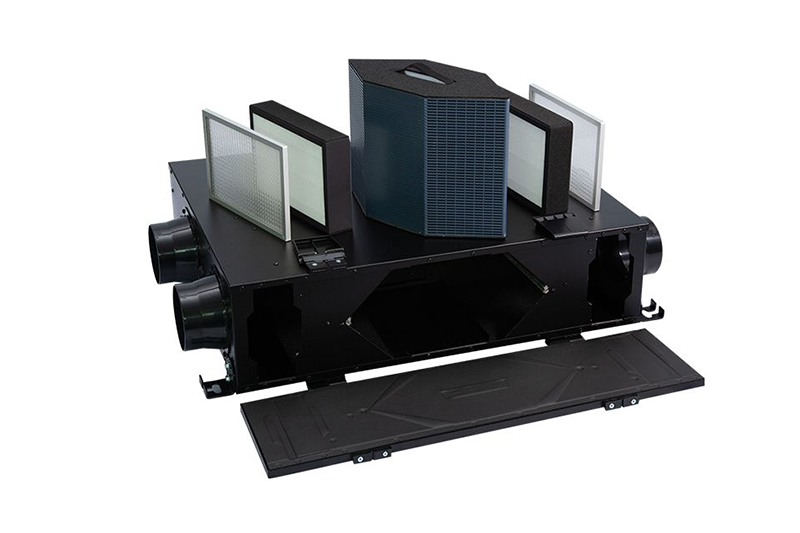

• Efficient cross-flow heat exchanger
Using polymer membrane material, with high heat recovery efficiency is up to 85%,enthalpy efficiency is up to 76%, effective air exchange rate above 98%,with flame retardant,long-term antibacterial and mildew prevention function, washable, life span up to 3~10 years.
• High efficiency Energy/heat recovery ventilation technology
In the hot season, the system precools and dehumidifies the fresh air, humidify and preheat in the cold season.
• Double purification protection
Primary filter+ high efficiency filter can filter 0.3μm particles, and the filtration efficiency is as high as 99.9%.
Why Choose Us
Tuya APP can be used for remote control.
App is available to IOS and Android phones with the following functions:
1. Monitoring indoor air quality Monitor local weather, temperature, humidity, CO2 concentration, VOC at your hand for healthy living.
2.Variable setting Timely switch, speed settings, bypass/timer/filter alarm/temperature setting.
3.Optional language Different language English/French/Italian/Spanish and so on to meet your requirement.
4.Group control One APP can control multiple units.
5.Optional PC centralized control(up to 128pcs ERV controlled by one Data acquisition unit)
Multiple data collectors are connected in parallel.
