Fresh air ABS distributor with high-quality ABS materials
Short Description:
The Fresh Air ABS Distributor is crafted with high-quality ABS materials.Used for airflow distribution in fresh air ventilation systems.Its advantage is strong, lightweight, small size, noise reduction, low resistance, sealed, environmentally friendly.
Product Video
Product Advantages
（1）There are two models of seven holes and eight holes, and the volume of seven holes is Smaller

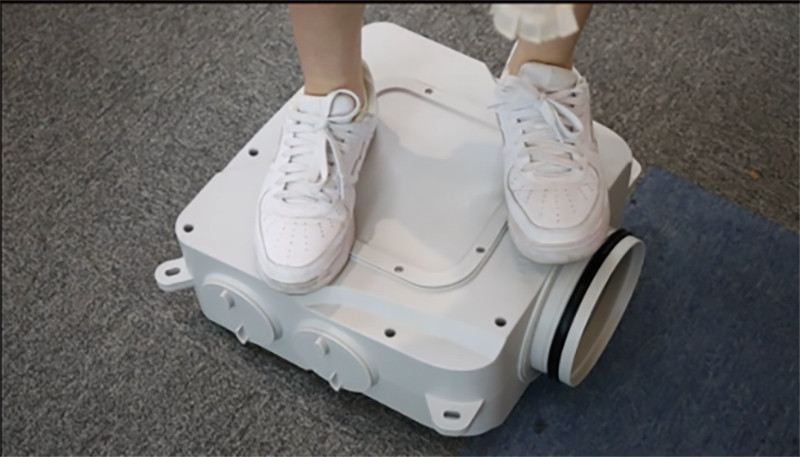

（2）Adopting new ABS material for integral injection molding, high strength, light weight and long service life.
（3）Lined with sound-absorbing cotton, effective noise reduction, double inspection cover design, easy to clean and maintain
（4）Streamlined air volume, small resistance, more uniform air supply
（5）The sealing ring seals each interface to reduce the air leakage rate, and can match the
installation of DN63, DN75, DN90 PE bellows at the same time
Product Parameter
| Product name | Model | Diameter | Size(mm) | Remark |

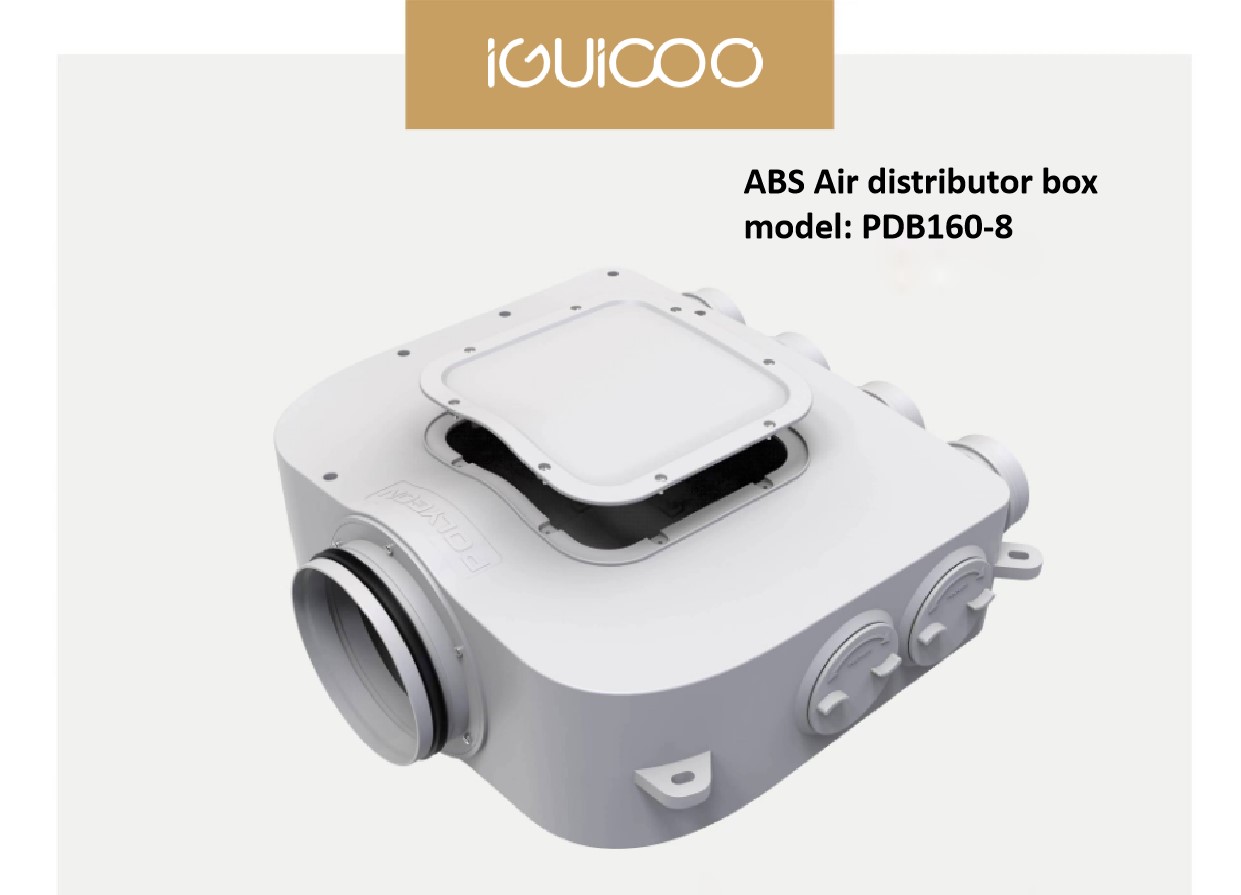

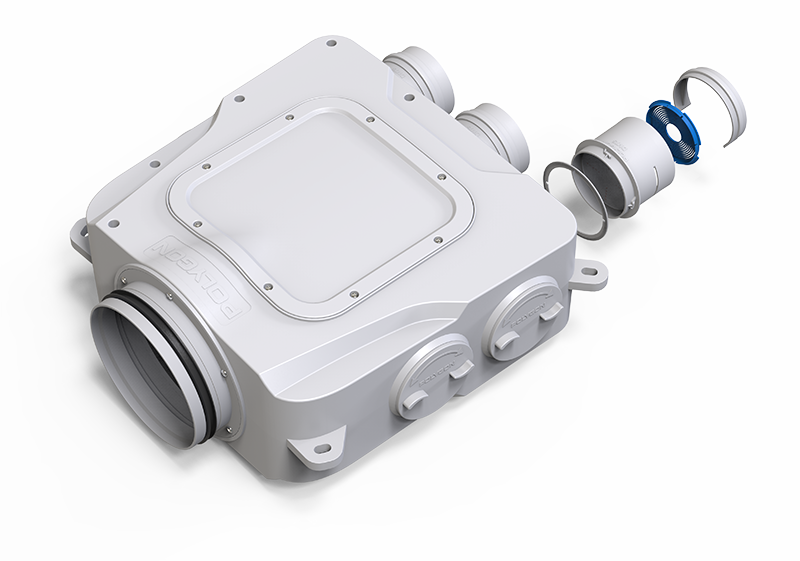

| ABS distributor | PDB160-7 | DN160 | 412.5*403*198 | Match ø63 ø75 ø90 ABS directly joint |
| ABS distributor | PDB160-8 | DN160 | 527*461*200 |
Details

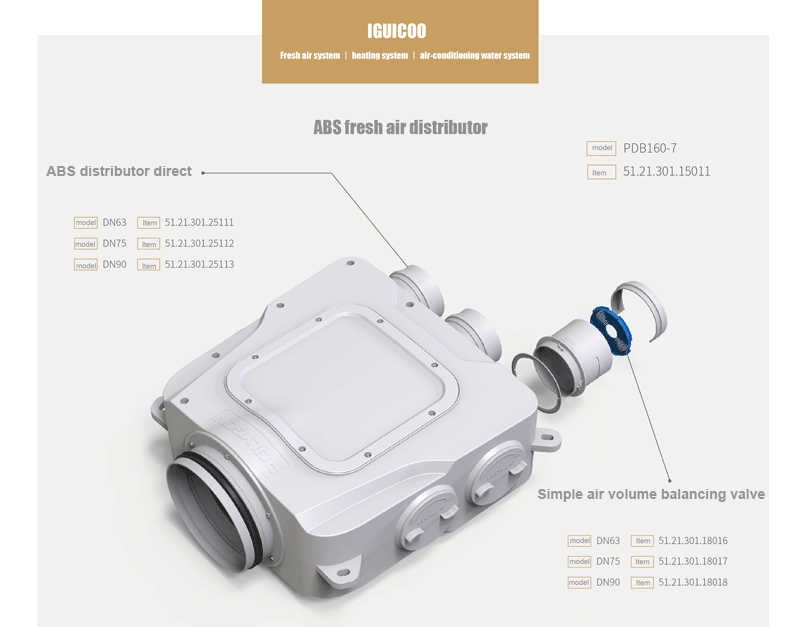

ABS distributor direct
Simple air volume balancing valve

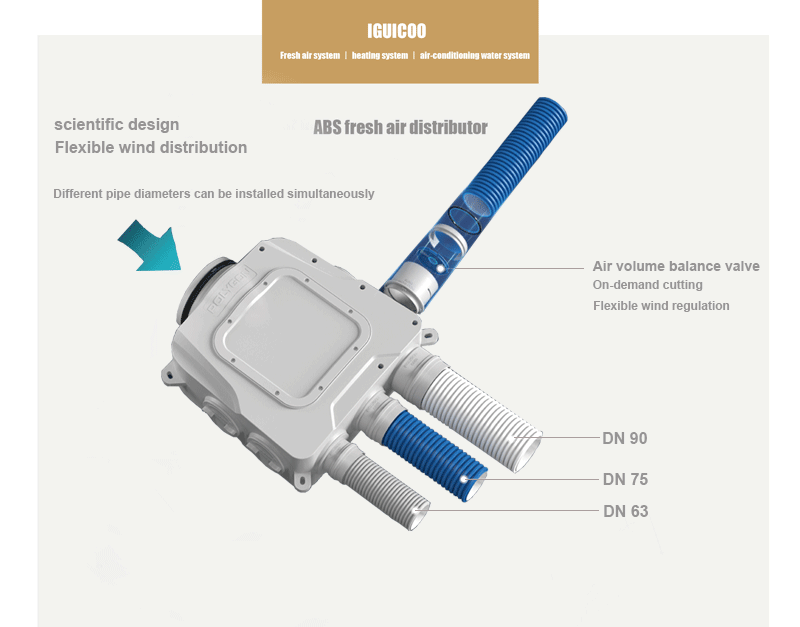

Scientific design
Flexible wind distribution
Air volume balance valve On-demand cutting
Flexible wind regulation DN90 DN75 DN63

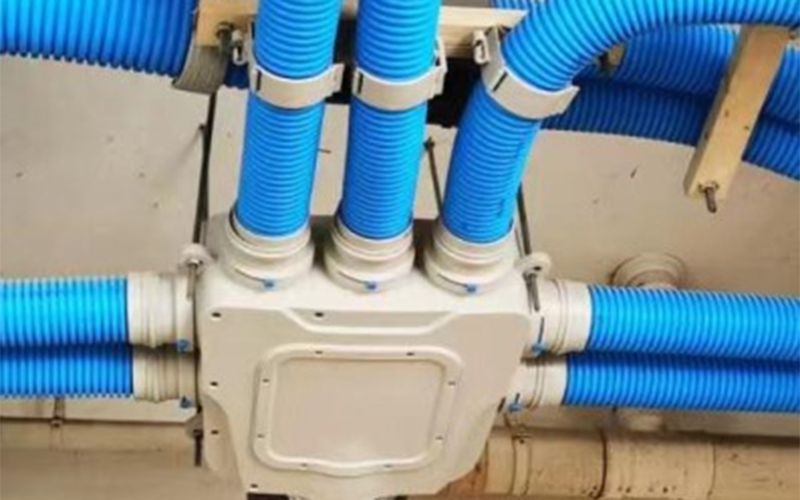

Usage Scenario

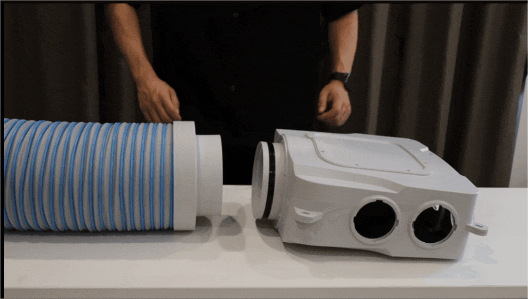

Type 1: Connect to the silencer
The silencer tube is connected directly to the distributor

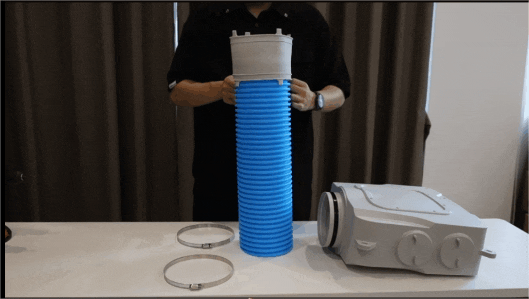

Type2: Connect the PE pipe with soft connection
Soft connect the flange to the main pipe，Attach the flange soft to the distributor

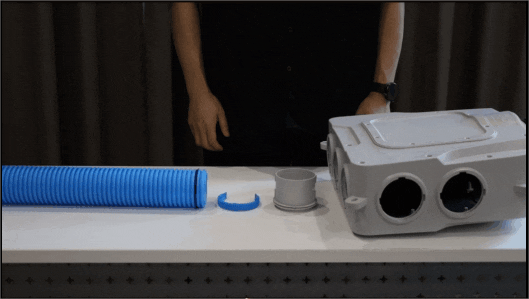

Branch pipe connection mode
Type1: Connect PE pipe directly with a distributor
Connect the PE tube directly to the distributor，Connect the distributor directly to the distributor.
Type2: Connect the PE tube to the distributor with the aperture air valve
Connect the aperture air valve to the distributor,Connect the branch pipe to the aperture air valve
