IGUICOO industrial 800m3/h-6000m3/h air recuperator hrv heat recovery ventilation with BLDC
Product Introduction
• Ceiling type installation, does not occupy the ground area.
• AC motor.
• Energy recovery ventilation (ERV).
• Heat recovery efficiency up to 80%.
• Multiple choices of large air volume, suitable for more dense crowd spaces.
• Intelligent control, RS485 communication interface optional.
• Operating ambient temperature:-5℃~45℃(standard);-15℃~45℃(Advanced configuration).
Product Details

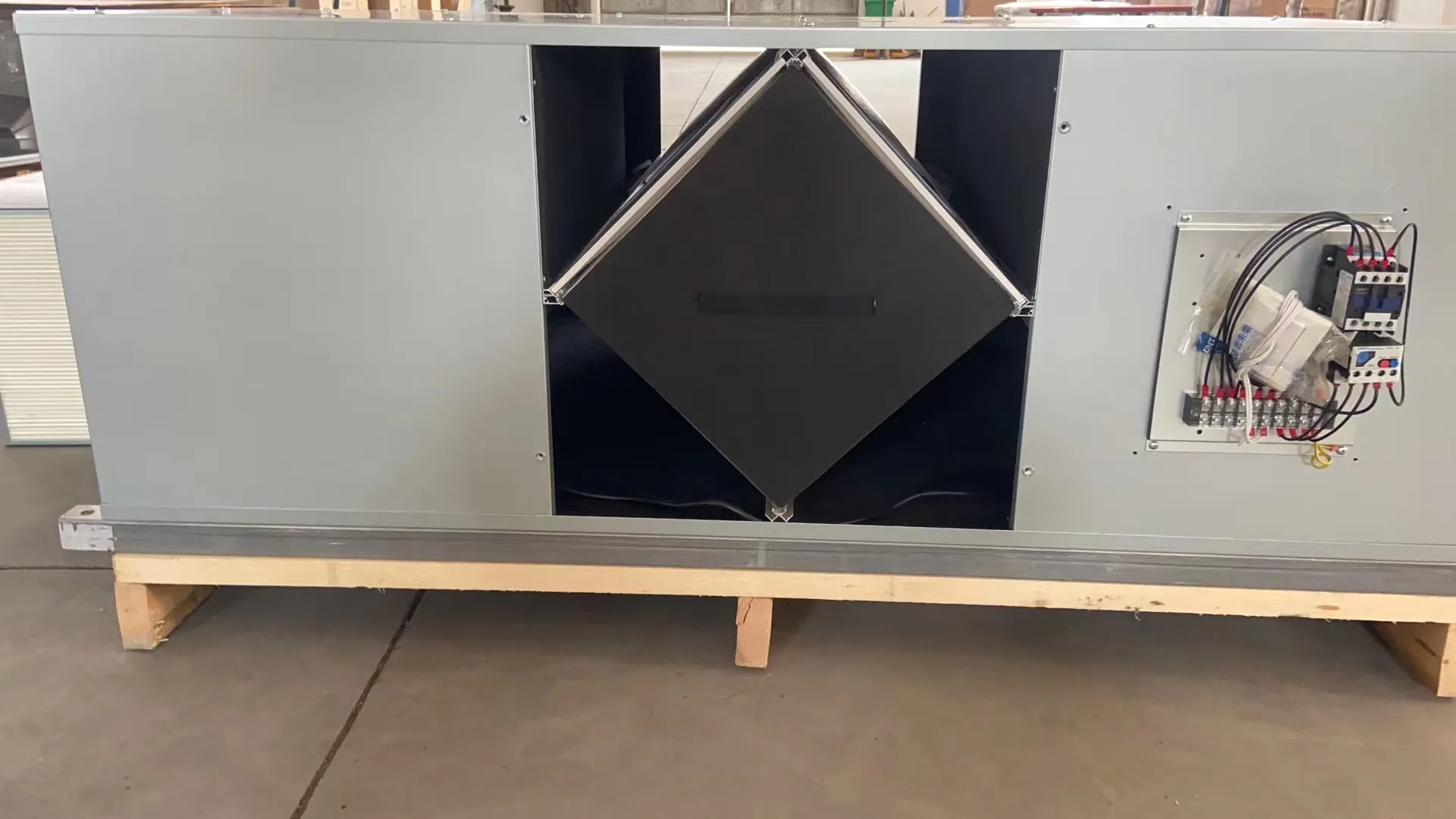

• High Efficiency Enthalpy Exchanger
• High efficiency Energy/heat recovery ventilation technology
In the hot season, the system precools and dehumidifies the fresh air, humidify and preheat in the cold season.

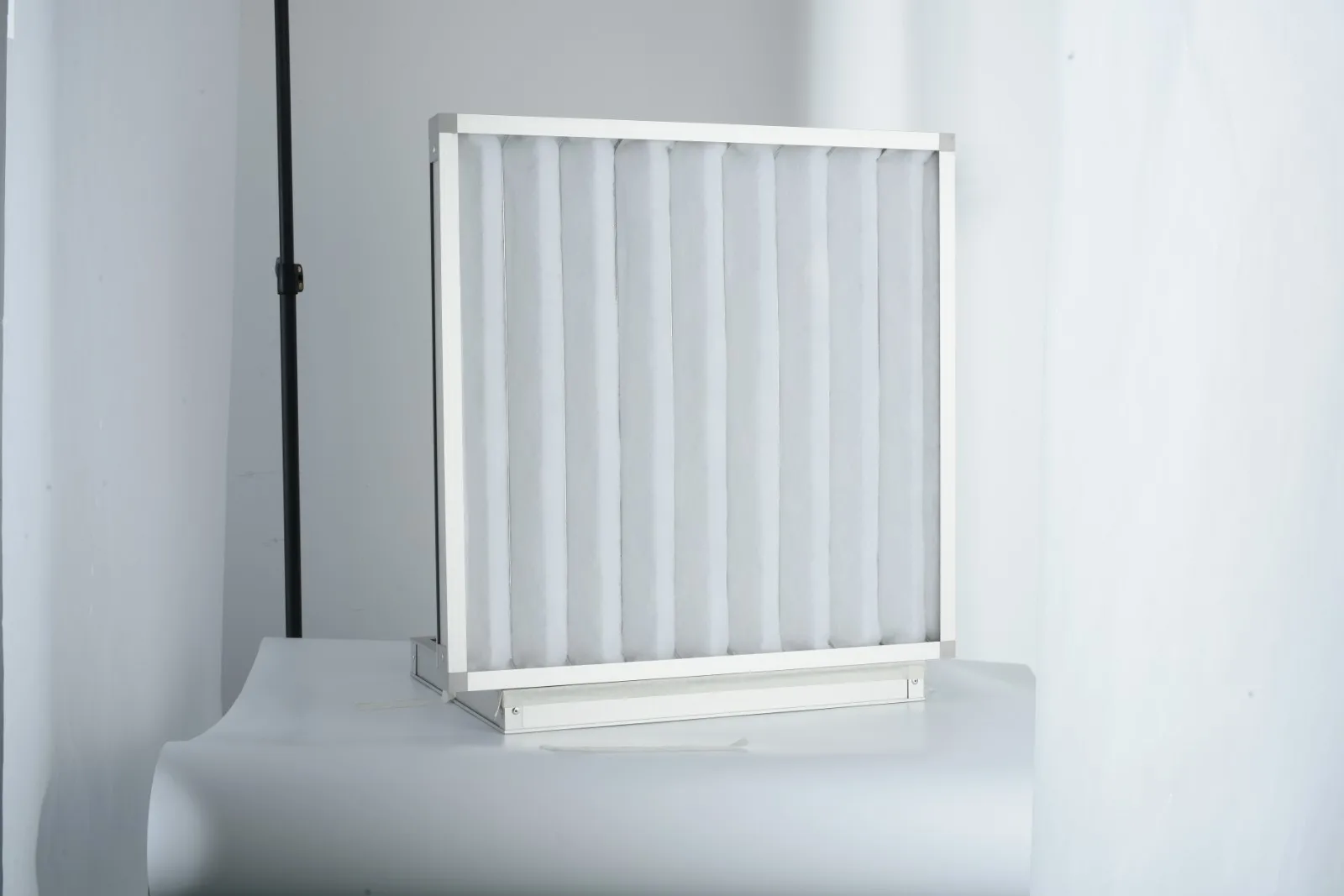

• Double purification protection
Primary filter+ high efficiency filter can filter 0.3μm particles, and the filtration efficiency is as high as 99.9%.
• Purification protection：

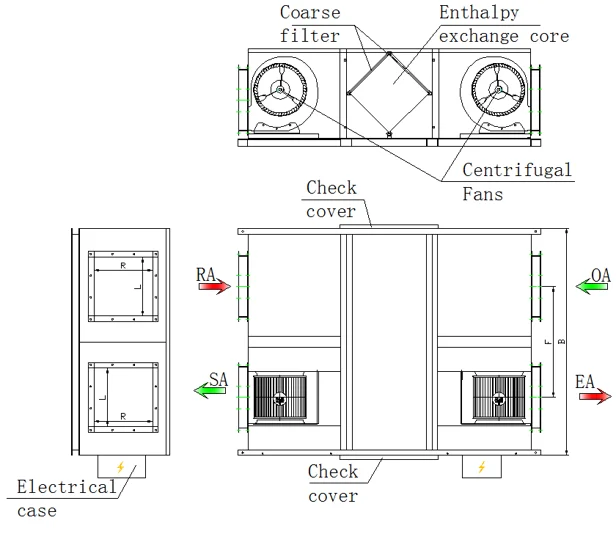

Structures
Product Parameter
| Model | Rated Airflow（m³/h） | Rated E.S.P（Pa） | Temp.Eff.(%) | Noise（dB(A)) | Volt. (V/Hz) | Power input (W) | N.W(Kg) | Size(mm) | Connect Size |
| TDKC-080(A1-1A2） | 800 | 200 | 76-82 | 42 | 210-240/50 | 260 | 58 | 1150*860*390 | φ250 |
| TDKC-100(A1-1A2） | 1000 | 180 | 76-82 | 43 | 210-240/50 | 320 | 58 | 1150*860*390 | φ250 |
| TDKC-125(A1-1A2） | 1250 | 170 | 76-81 | 43 | 210-240/50 | 394 | 71 | 1200*1000*450 | φ300 |
| TDKC-150(A1-1A2） | 1500 | 150 | 76-80 | 50 | 210-240/50 | 690 | 71 | 1200*1000*450 | φ300 |
| TDKC-200(A1-1A2） | 2000 | 200 | 76-82 | 51.5 | 380-400/50 | 320*2 | 170 | 1400*1200*525 | φ300 |
| TDKC-250(A1-1A2） | 2500 | 200 | 74-82 | 55 | 380-400/50 | 450*2 | 175 | 1400*1200*525 | φ300 |
| TDKC-300(A1-1A2） | 3000 | 200 | 73-81 | 56 | 380-400/50 | 550*2 | 180 | 1500*1200*580 | φ300 |
| TDKC-400(A1-1A2） | 4000 | 250 | 73-81 | 59 | 380-400/50 | 150*2 | 210 | 1700*1400*650 | φ385 |
| TDKC-500(A1-1A2） | 5000 | 250 | 73-81 | 68 | 380-400/50 | 1100*2 | 300 | 1800*1500*430 | φ385 |
| TDKC-600(A1-1A2） | 6000 | 300 | 73-81 | 68 | 380-400/50 | 1500*2 | 385 | 2150*1700*906 | φ435 |
Application Scenarios
Factory
Office
School
Stash
Selection of air flow
Selection of air flow
First of all, the selection of air volume is related to the use of the site, population density, building structure, etc.
| Room type | Ordinary residential | High density scene | ||||
| GYM | Office | School | Meeting room/Theater mall | Supermarket | ||
| Airflow needed (per person) （V) | 30m³/h | 37~40m³/h | 30m³/h | 22~28m³/h | 11~14m³/h | 15~19m³/h |
| Air changes per hour (T) | 0.45~1.0 | 5.35~12.9 | 1.5~3.5 | 3.6~8 | 1.87~3.83 | 2.64 |
For example: The area of Ordinary residential is 90㎡（S=90),the net height is 3m(H=3),and there are 5 persons(N=5) in it. If it is calculated according to “Airflow needed(per person)”,and assume that:V=30,the result is V1=N*V=5*30=150m³/h.
If it is calculated according to “Air changes per hour”,and assume that:T=0.7,the result is V2=T*S*H=0.7*90*3=189m³/h. Since V2＞V1，V2 is better unit for selecting.
When selecting equipment, the leakage volume of the equipment and air duct should also be added, and 5%-10% should be added to the air supply and exhaust system.
So, the optimal air volume selection should be V3=V2*1.1=208m³/h.
Regarding the air volume selection of residential buildings, China currently chooses the number of air changes per unit time as a reference standard.
As to special industry such as hospital(surgery and the special nursing room),labs,workshops,airflow required should be determined in conformity with regulations concerned.
