Products
Indoor positive pressure wall mounted bedroom air ventilation system
Short Description:
240m³/h airflow,inner circulation mode, wind mixing mode,double Filtration.Can be applied to small living room and other medium space places
Product Introduction
The positive pressure home ventilation system is equipped with a child lock , make sure the safety of children. Silent environment,the noise is low decibels when ventilation system is on.
Brushless DC motor
The DC motor has good power and durable， keep fast rotation speed and low consumption,making it become an environment choice.
Equipped with H13 and UV filter , it can removes up to 99% of PM2.5 particulate , including dust, allergens, pet dander, and even harmful bacteria and viruses.At the same time, UV lamps can effectively inhibit most of the harmful microorganisms in the room, effectively weaken their ability to reproduce, and reduce the pollution of bacteria to the air

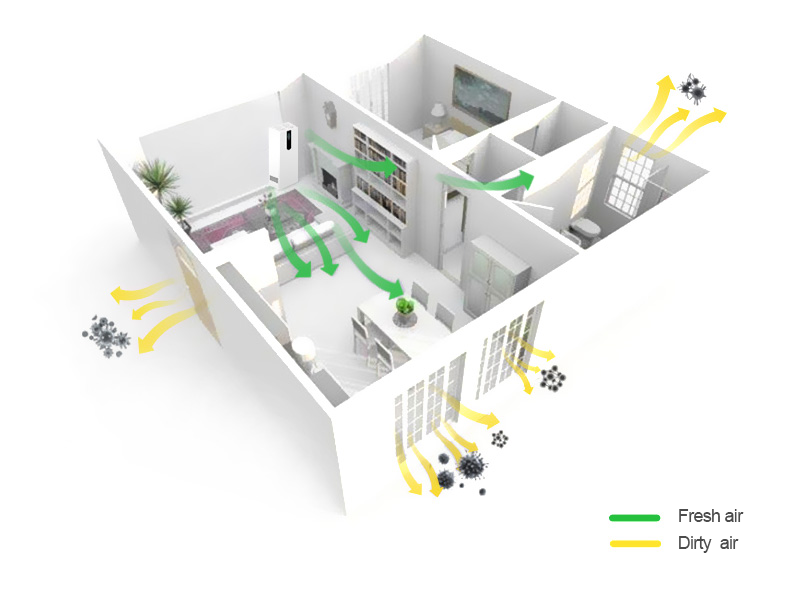

Micro positive pressure running diagram
Make the indoor air circulate through the way of micro positive pressure.
Inner circulation mode.
wind mixing mode, multiple running modes.
Touching control、WIFI control、Remote control (optional)
Whether it's at work or traveling you can control your ERV anywhere.

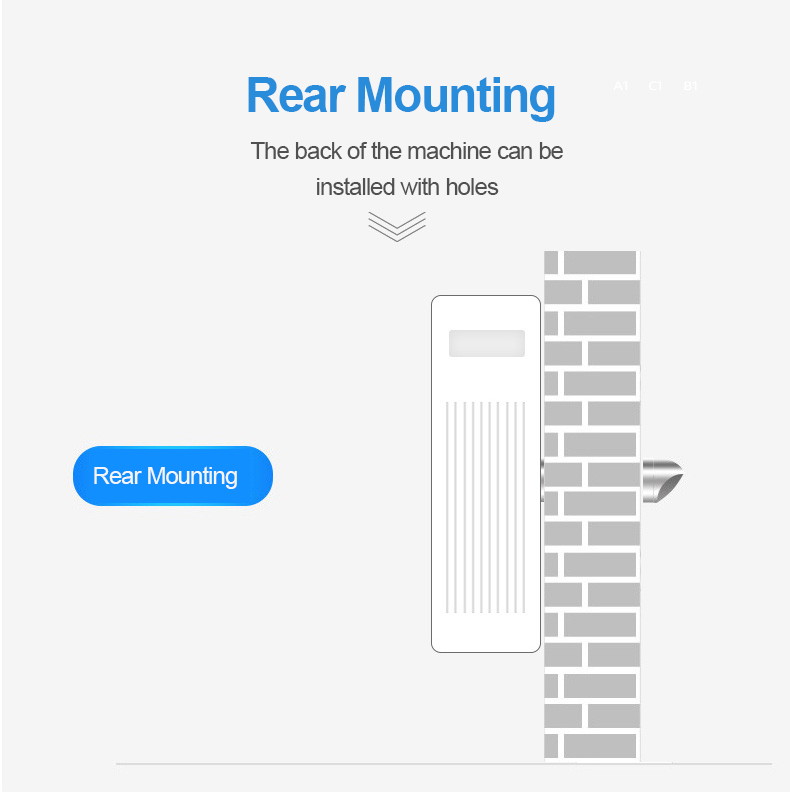

Wall mounted installation , save every inch of floor space.
Product Details
Brushless DC Motor
To make sure the great power and high durability of the machine and maintain it's fast rotation speed and low consumption, the
brushless motor adopts high-precision steering gear.
Multiple Filtration
The device is equipped with filter of primary, medium-efficiency and H13 high-efficiency, and UV sterilization module.
Running Diagram
Inner circulation mode.
wind mixing mode, multiple running modes.

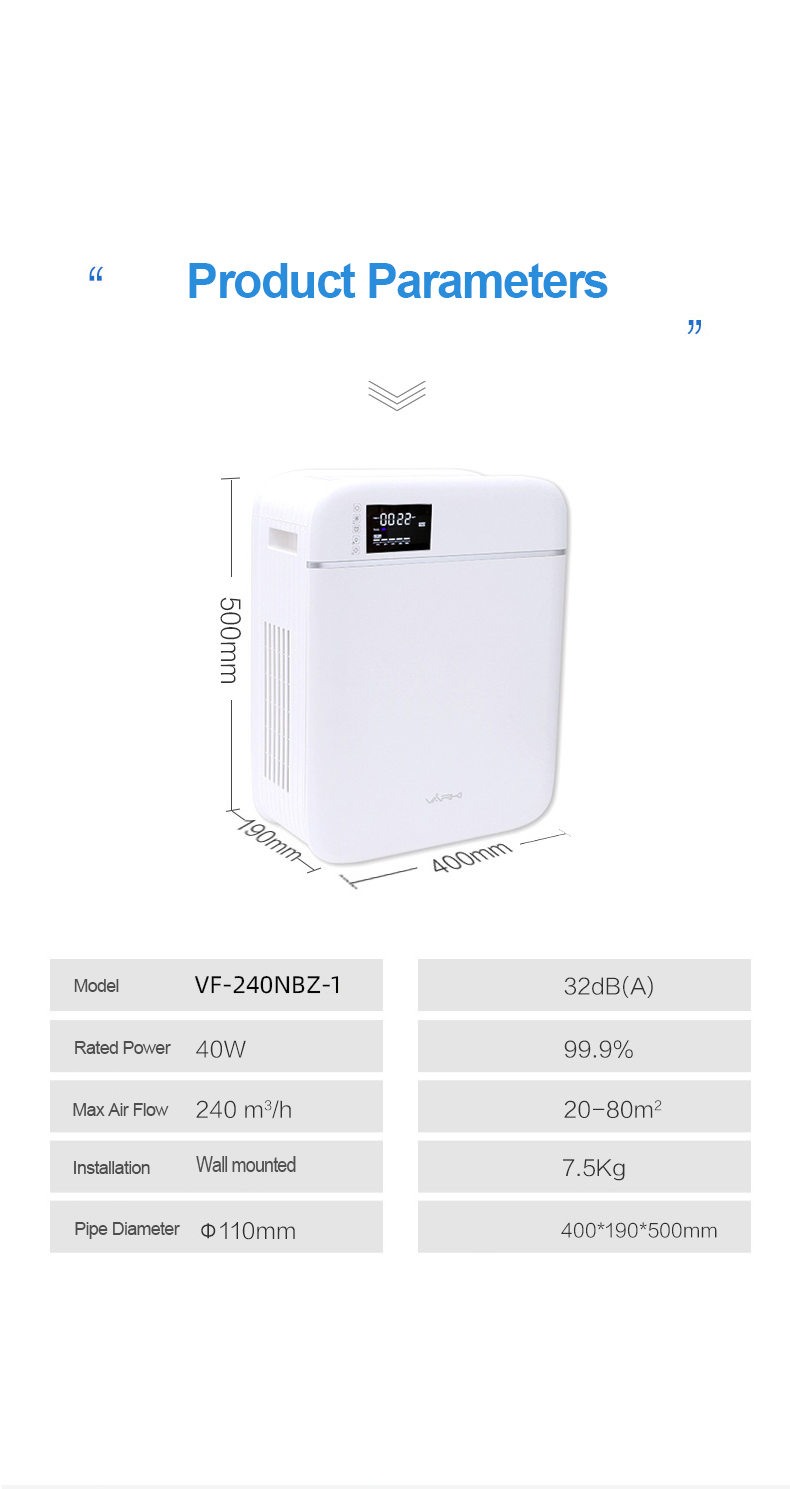

| Product Model | Air Flow (m³/h) | Power (W) | Weight (Kg) | Applicable area（㎡） | Pipe Size (mm) | Product Size (mm) |
| VF-240NBZ-1 | 240 | 40 | 7.5Kg | 20-80 | Φ110 | 400*190*500 |
