Smart Ceiling mounted Energy Recovery Ventilator System
Product Features
Airflow: 150~500m³/h
Model: TFKC A2 series
1、Fresh air +Energy recovery
2、Airflow: 150-500 m³/h
3、Enthalpy exchange core
4、Filter: G4 primary filter+H12(can be customized)
5、Buckle type bottom maintenance easy replace filters
6、Customize as you want.
Product Introduction
Simple and cleaner , healthy, and energy saving. That is what the whole world wants.
For this purpose,energy recovery ventilator is become necessary. We generate electricity with solar photovoltaic panels, and we build passive green energy houses. We also need to breathe while keeping our living space energy efficient. At this point, ERV provides us with a good solution.
For some projects item,our ventilator system can connect over 100 equipments linkage control, can be centralized display control of each device,especially for some premium hotel and apartments, is a good solution for air ventilation engineering projects.
Product Advantages
• BLDC motor, more save energy

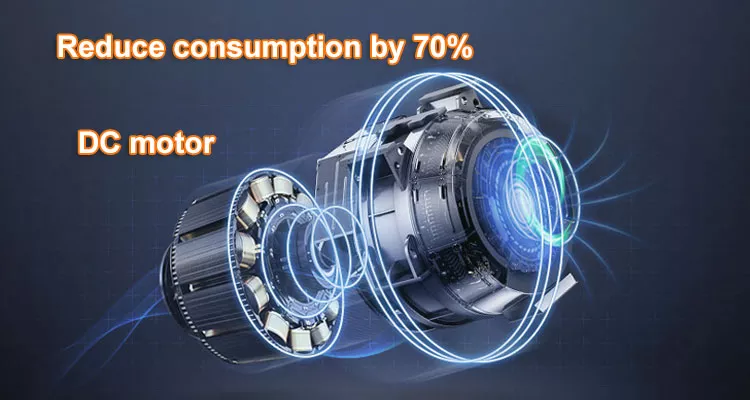

The high-efficiency brushless DC motor is built into the Smart energy recovery ventilator, which can reduce the power consumption by 70% and save energy significantly. VSD control is suitable for most engineering air volume and ESP requirements.
• The energy recovery core (enthalpy exchanger)
Featuring high moisture permeability, good air tightness, good tear resistance and aging resistance.The gaps between the fibers are so small that only water molecules with small diameters can pass through, not odor molecules with large diameters. In this way, temperature and humidity can be recovered smoothly, preventing pollutants from seeping into the fresh air.
• Energy saving principle

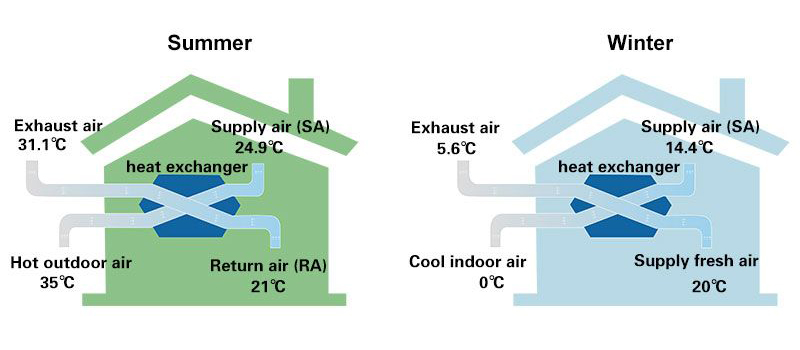

Heat recovery calculating equation：SA temp.＝（RA temp.−OA temp.）×temp. recovery efficiency + OA temp.
Example：14.8℃=（20℃−0℃）×74%+0℃
Heat recovery calculating equation
SA temp.＝（RA temp.−OA temp.）×temp. recovery efficiency + OA temp.
Example：27.8℃=（33℃−26℃）×74%
| Air flow (m³/h) |
Energy recovery efficiency (%) | Electricity saving in summer (kW·h) |
Electricity saving in winter(kW·h) | Electricity saving in a year(kW·h) | Running costs saving(USD) |
| 250 | 60-76 | 1002.6 | 2341.3 | 3343.9 | 267.5 |
Product Details

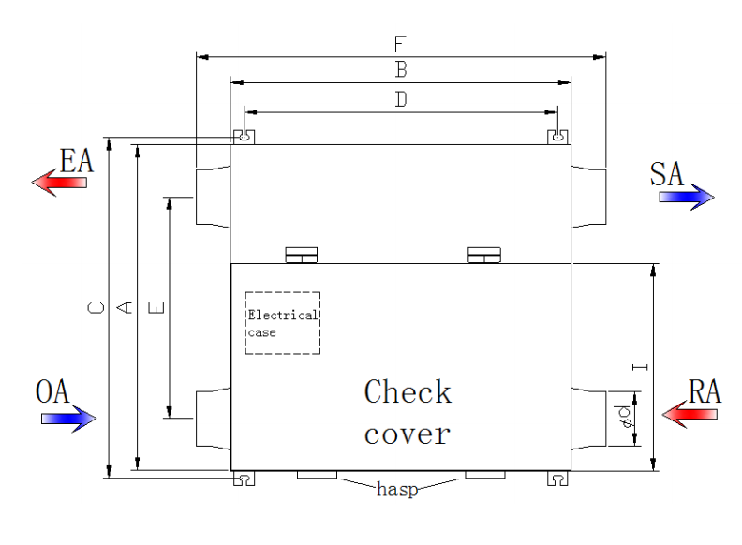

FRONT VIEW

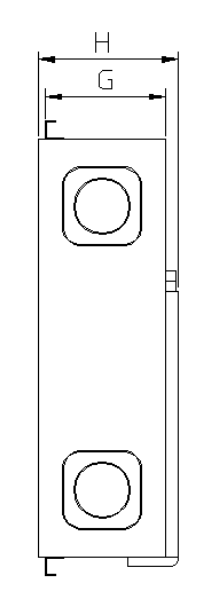

SIDE VIEW
|
Model
|
A
|
B |
C |
D |
E |
F |
G |
H |
I |
d |
|
TFKC-015(A2series) |
660 |
690 |
710 |
635 |
465 |
830 |
190 |
200 |
420 |
114 |
|
TFKC-025(A2series) |
660 |
690 |
710 |
635 |
465 |
830 |
190 |
200 |
420 |
114 |
|
TFKC-030(A2series) |
735 |
735 |
680 |
785 |
500 |
875 |
245 |
250 |
445 |
144 |
|
TFKC-035(A2series) |
735 |
735 |
680 |
785 |
500 |
875 |
245 |
250 |
445 |
144 |
|
TFKC-050(A2series) |
860 |
735 |
910 |
675 |
600 |
895 |
240 |
270 |
540 |
194 |
Product Description

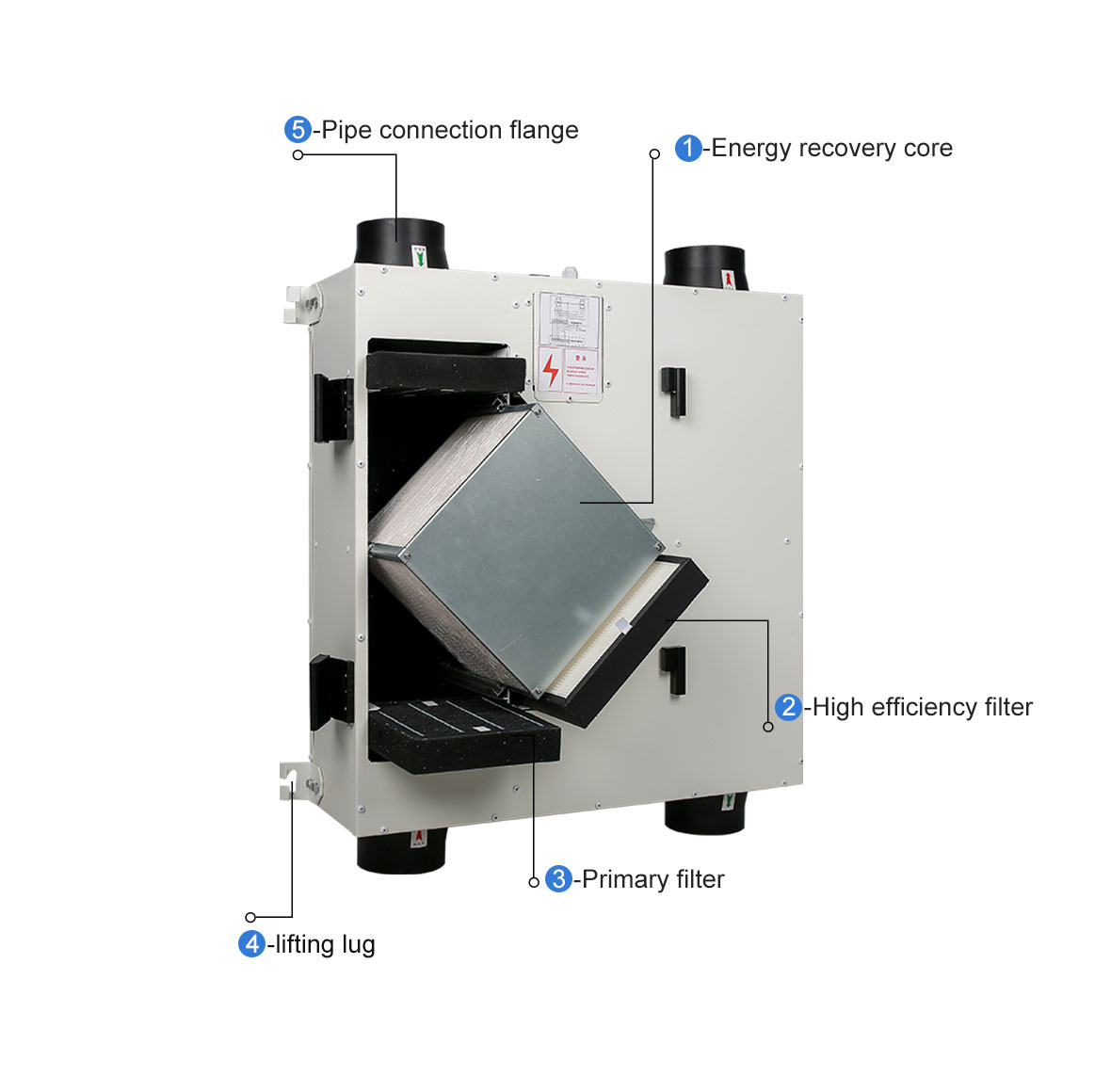

Structures
Product Parameter
|
Model |
Rated Airflow （m³/h） |
Rated E.S.P（Pa） |
Temp.Eff. (%) |
Noise （dB(A)) |
Purification efficiency |
Volt. (V/Hz) |
Power input (W) |
N.W(Kg) |
Size(mm) |
Control form |
Connect Size |
| TFKC-015(A2-1D2) | 150 | 100(200) | 75-80 | 32 | 99% | 210-240/50 | 75 | 28 | 690*660*220 | Intelligent control/APP | φ110 |
| TFKC-025(A2-1D2) | 250 | 100(160) | 73-81 | 36 | 210-240/50 | 90 | 28 | 690*660*220 | φ110 | ||
| TFKC-030(A2-1D2) | 300 | 100(200) | 74~82 | 38 | 210-240/50 | 120 | 35 | 735*735*265 | Φ150 | ||
| TFKC-035(A2-1D2) | 350 | 100(200) | 74-82 | 39 | 210-240/50 | 150 | 35 | 735*735*265 | φ150 | ||
| TFKC-050(A2-1D2) | 500 | 100(200) | 76-84 | 42 | 210-240/50 | 220 | 41 | 735*860*285 | φ200 |

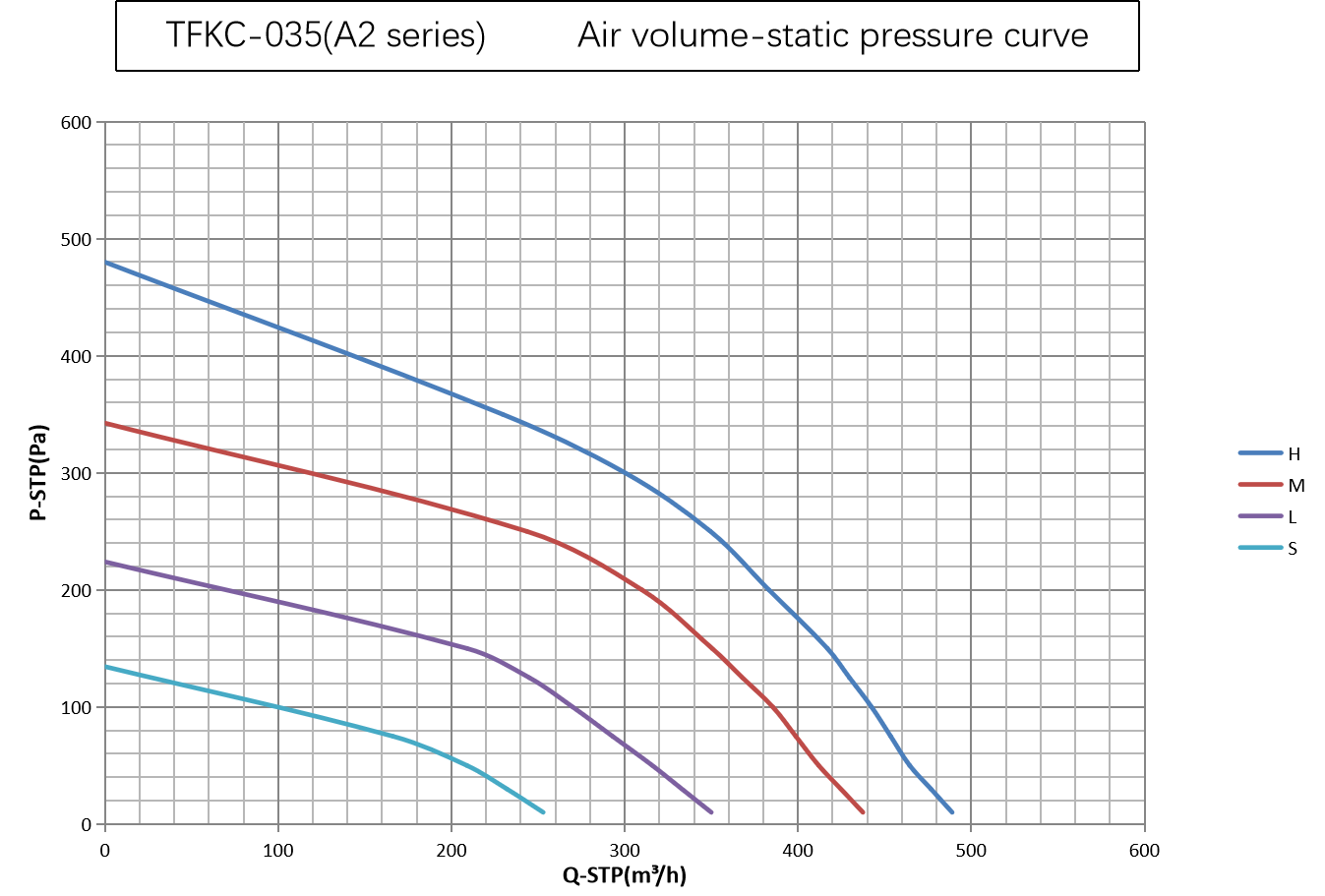

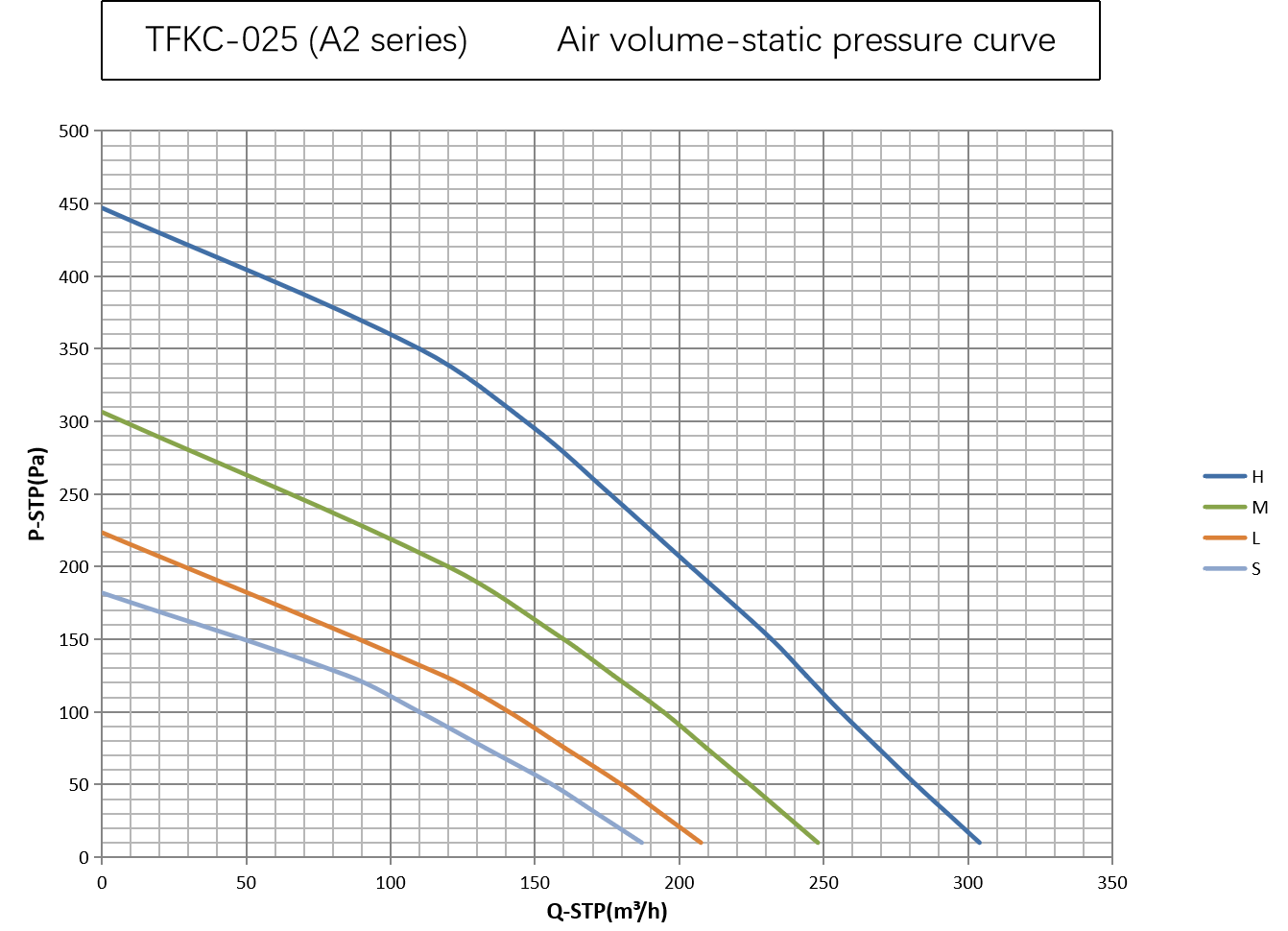

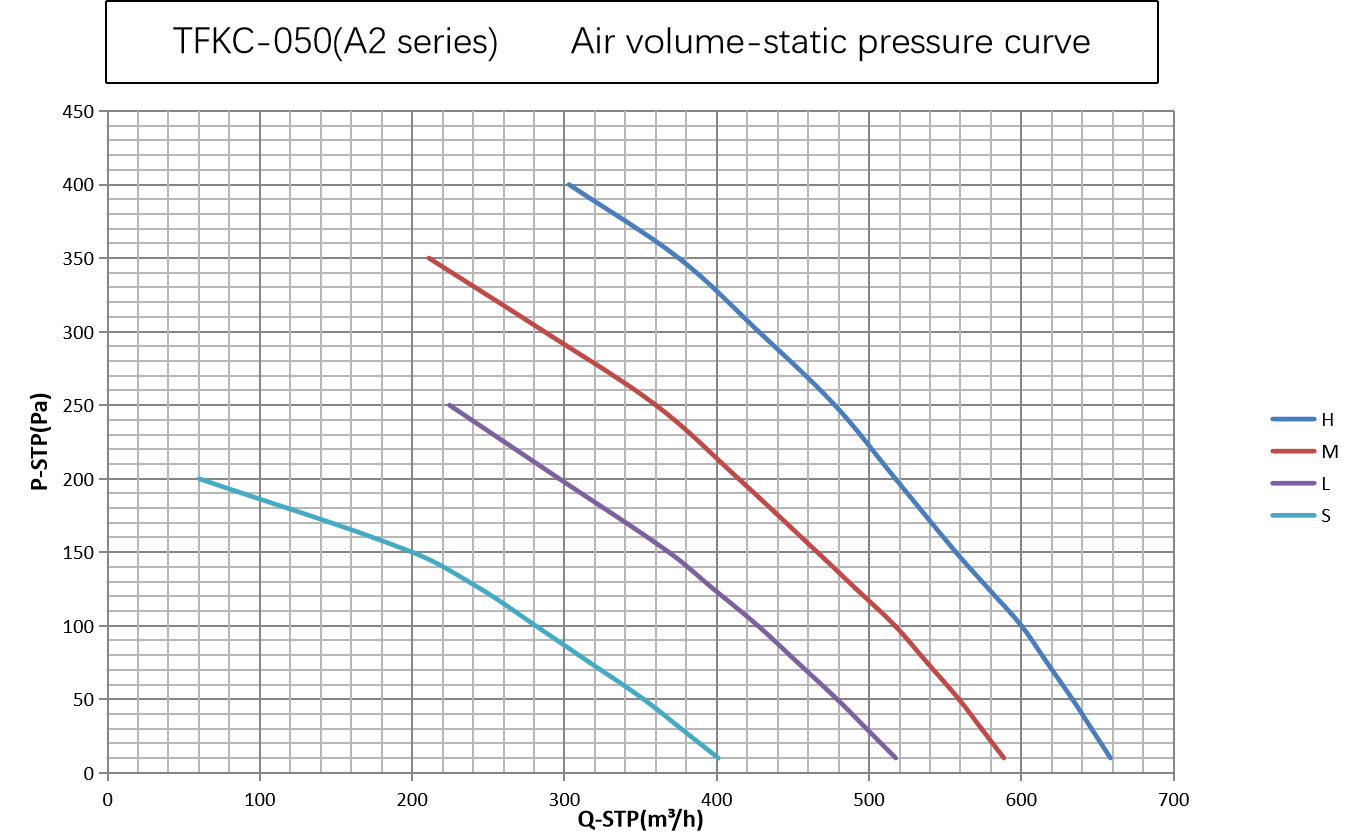

TFKC series air volume-static pressure curve
Calculation Conditions
Air flow: 250m³/h
Running time of air conditioning system
Summer: 24h/day X 122days=2928(Jun. to Sep.)
Winter: 24h/day X 120days=2880(Nov. to Mar.)
Electric charge: 0.08USD/kW·h
Indoor conditions: Cooling 26℃(RH 50%), Heating 20C(RH50%)
Outdoor conditions: Cooling 33.2℃(RH 59%), Heating-10C(RH45%)

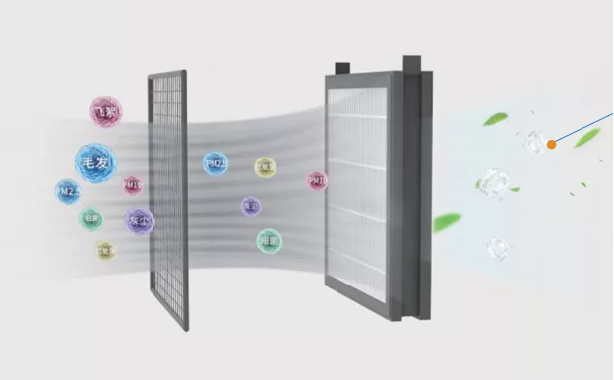

• Double purification protection：
Primary filter+ high efficiency filter can filter 0.3μm particles, and the filtration efficiency is as high as 99.9%.

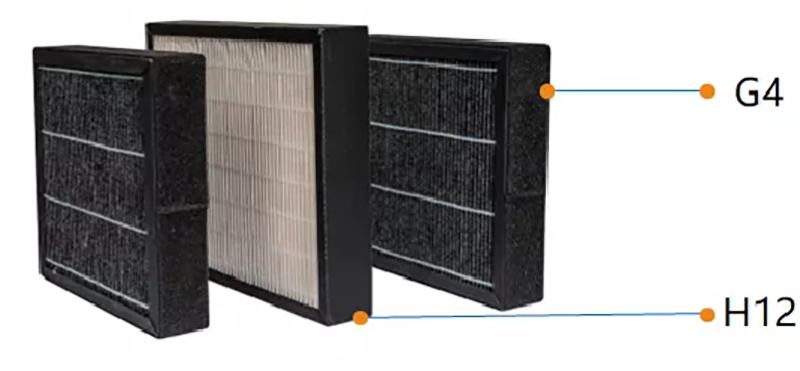

G4*2(Default is white)+H12(Customizable)
A：Primary purification(G4):
The primary filter is suitable for the primary filtration of ventilation system, mainly used for filtering dust particles above.5μm; the primary filter can be reused after washing.
B: High efficiency purification(H12):
Effectively purify PM2.5 Particulate, for 0.1 micron and 0.3 micron particles, the purification efficiency reaches 99.998%. It traps 99.9% of bacteria and viruses and causes them to die from dehydration within 72 hours.
Application Scenarios
Private Residence
Hotel
Basement
Apartment
Why Choose Us

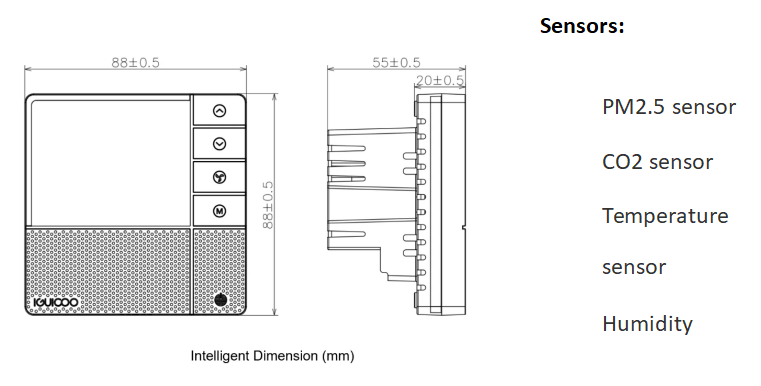

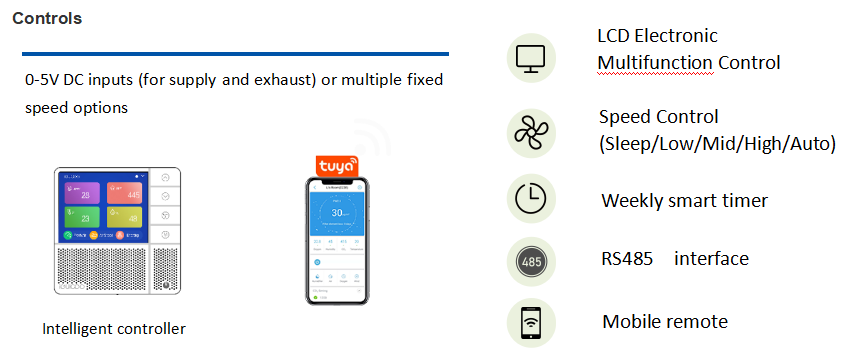

Tuya APP can be used for remote control.
App is available to IOS and Android phones with the following functions:
1. Monitoring indoor air quality Monitor local weather, temperature, humidity, CO2 concentration, VOC at your hand for healthy living.
2.Variable setting Timely switch, speed settings, bypass/timer/filter alarm/temperature setting.
3.Optional language Different language English/French/Italian/Spanish and so on to meet your requirement.
4.Group control One APP can control multiple units.

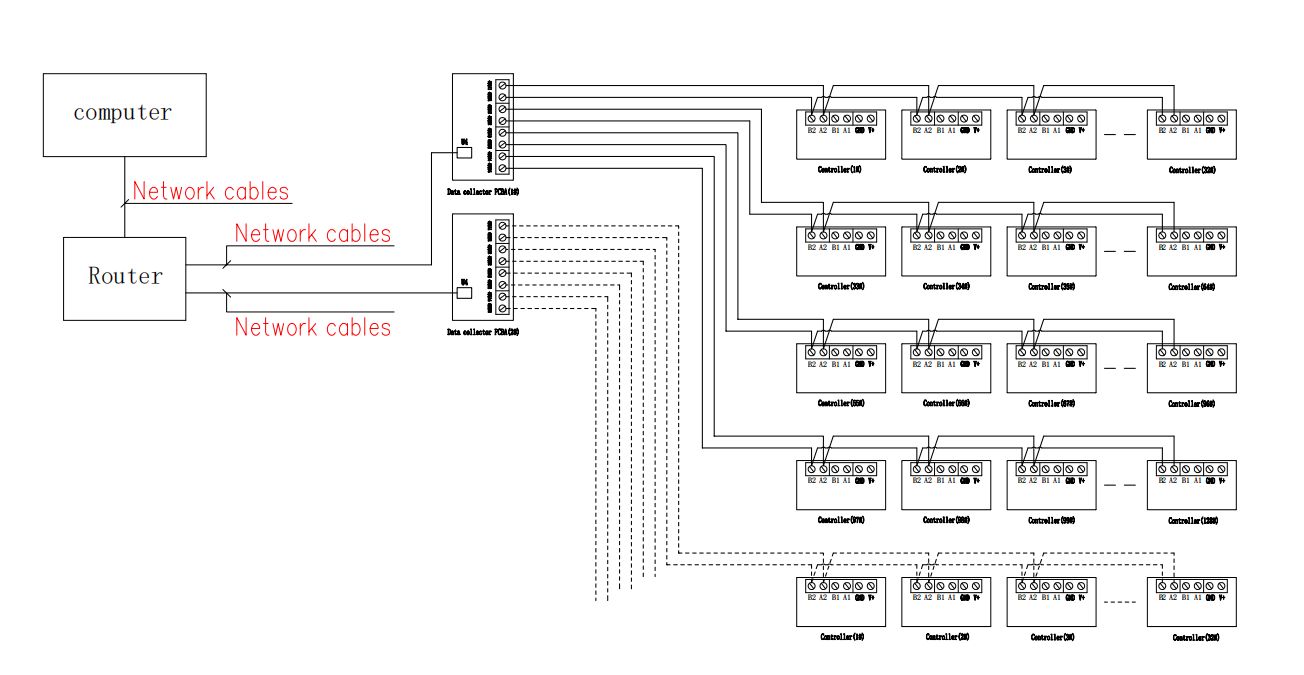

5.Optional PC centralized control(up to 128pcs ERV controlled by one Data acquisition unit)
Multiple data collectors are connected in parallel.

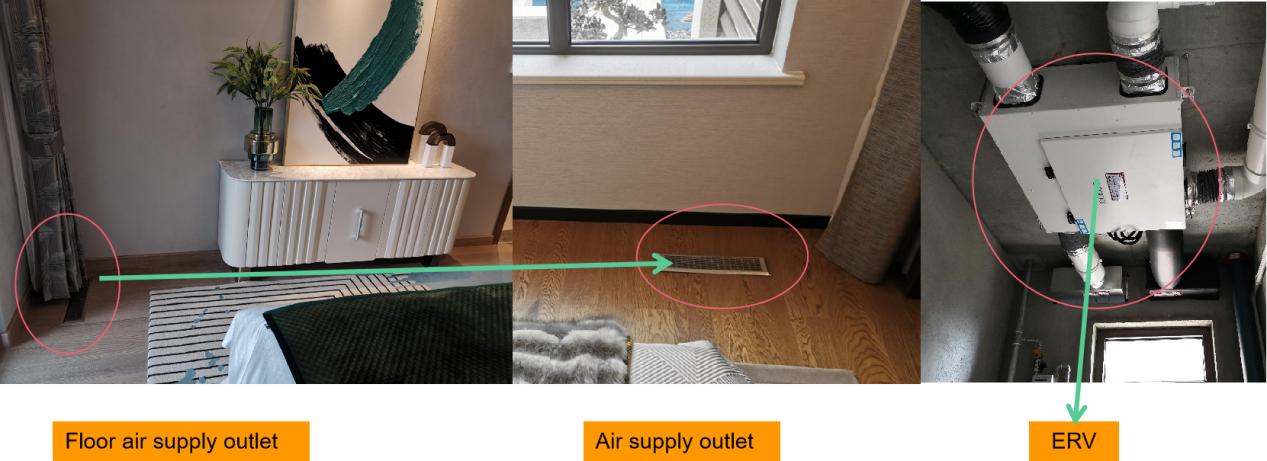

Application(ceiling mounted)
